Figure 3
From: Numerical and experimental analysis of Lagrangian dispersion in two-dimensional chaotic flows

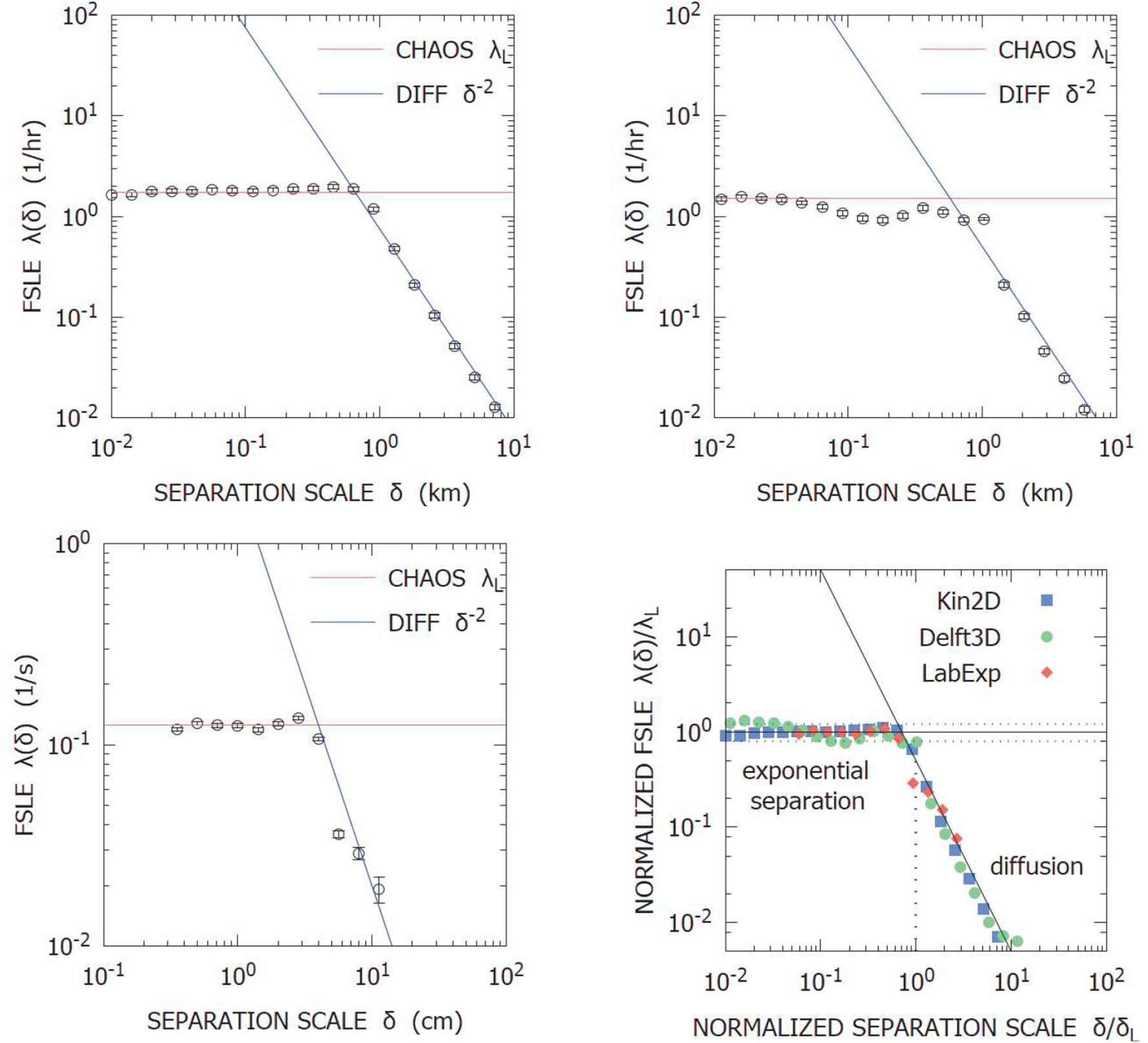

Finite-Scale Lyapunov Exponents: Kin2D (top left), Delft3D (top right), LabExp (bottom left) and overlap of all the renormalized functions (bottom right).
