Figure 5
From: Numerical and experimental analysis of Lagrangian dispersion in two-dimensional chaotic flows

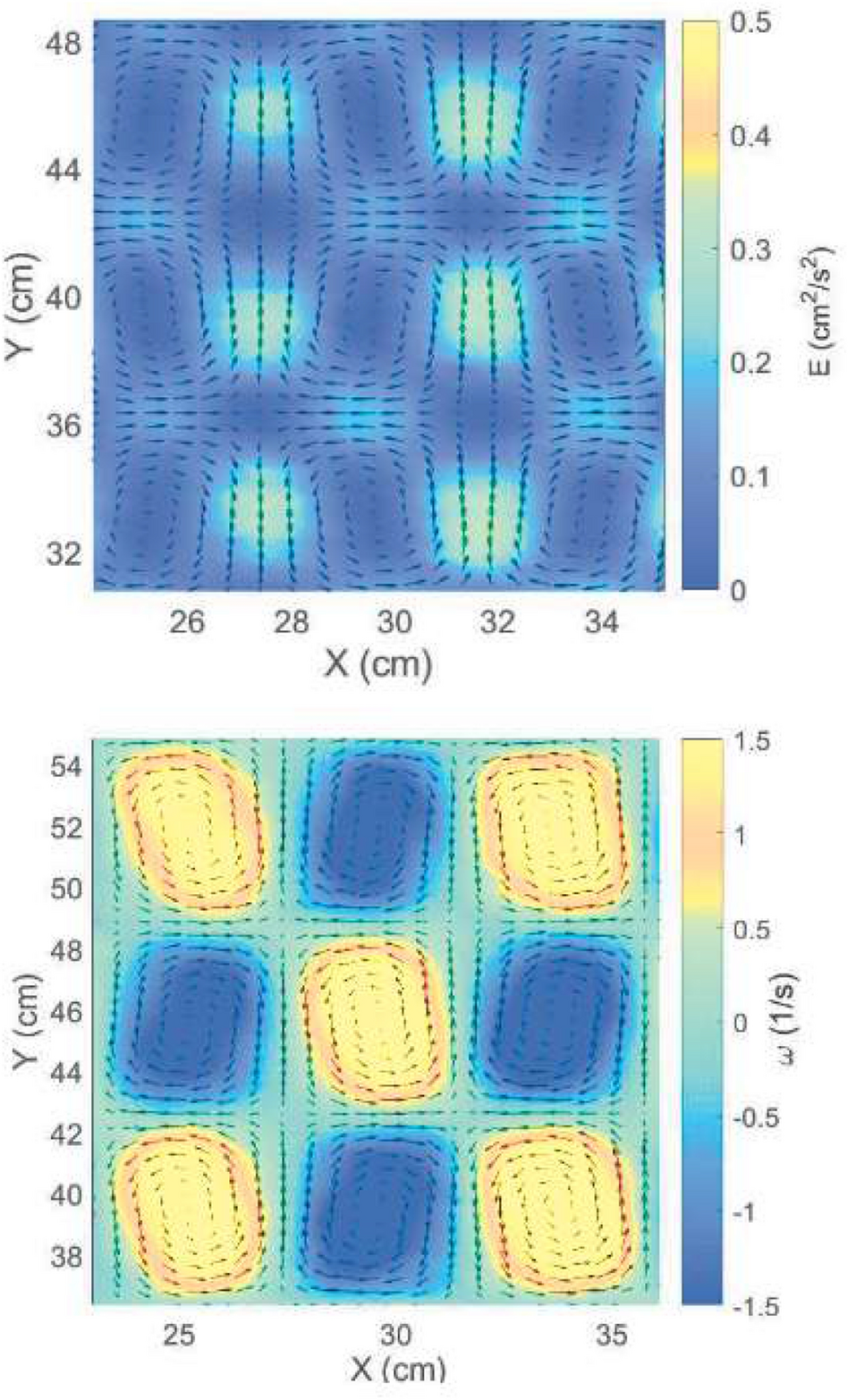

Time averaged velocity field overlapped to kinetic energy (top) and vorticity (bottom) maps for the set up: \(I = 2\) A, \(I^{'} = 1\) A, \(f = 0.08\) Hz. Velocity data are interpolated on a \(128\times 128\) grid.
