Figure 11
From: Experimental evidence of shear waves in fractional viscoelastic rheological models

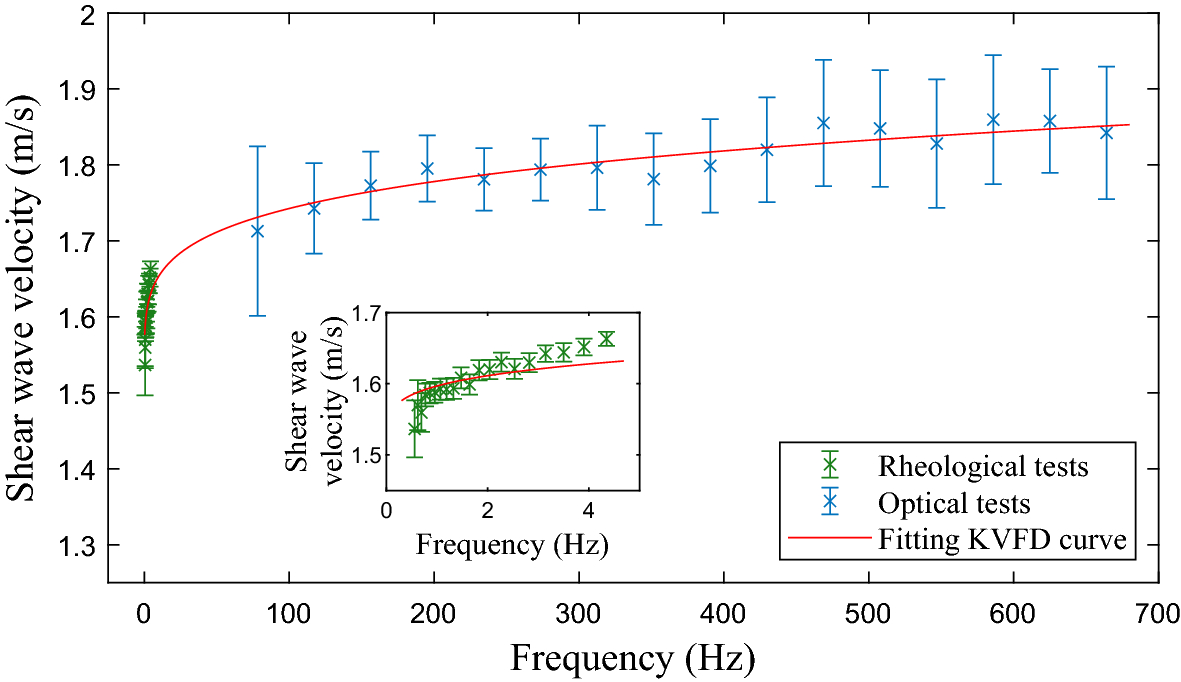

Shear wave velocity dispersion curve over frequency for the background material of the phantoms by combining results from the rheometry tests (in green) and from the HSC tests (in blue). The red curve is the result of fitting the data by the theoretical KVFD expression for shear wave velocity. Results are shown in terms of mean and standard deviation values after combining results from the three phantoms.
