From: Integrated computational analysis reveals HOX genes cluster as oncogenic drivers in head and neck squamous cell carcinoma

Figure 3

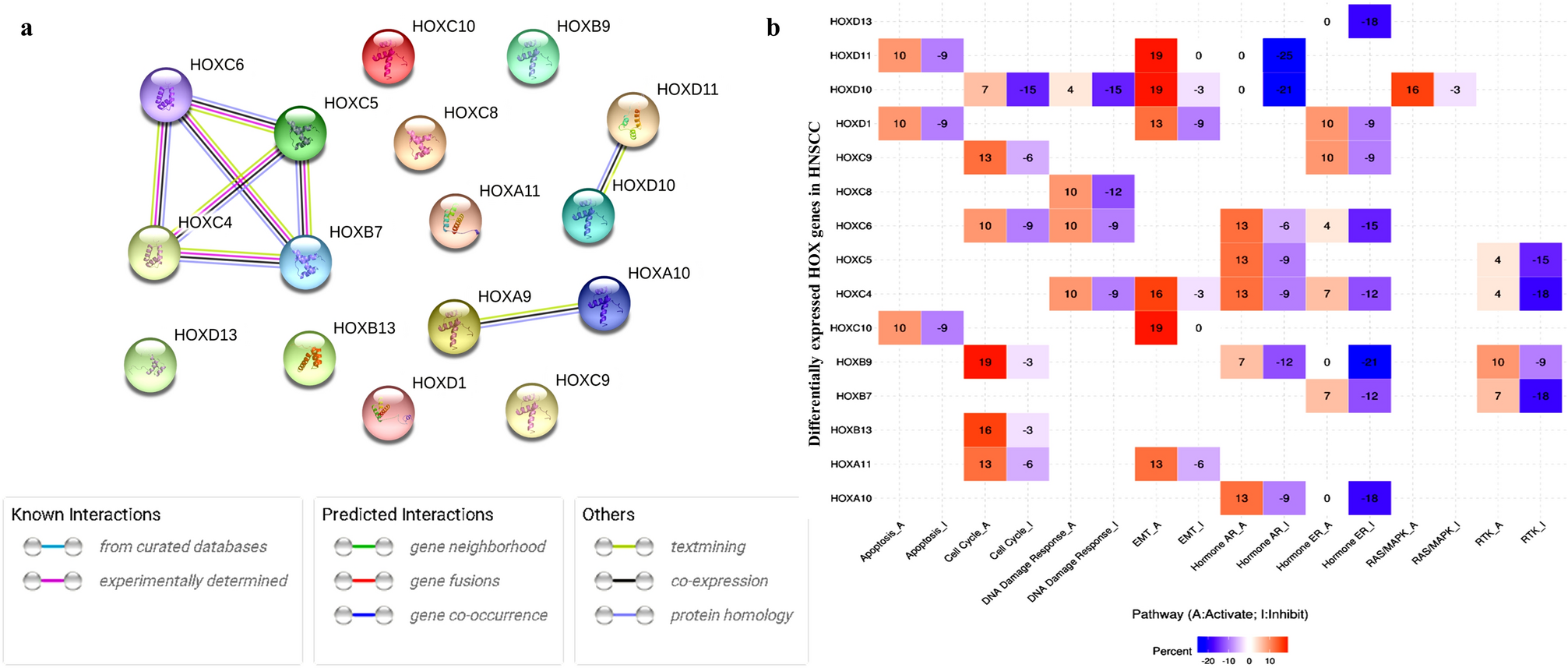

Co-expression analysis: (a) Overview of PPI Network of 16 DEHGs, with > 0.7 confidence score constructed using STRING v11.5 database. The network includes 8 edges between 16 nodes that show the co-expression amongst DEHGs. (b) Pathway analysis: A heatmap showing DEHGs that activate (A) and inhibit (I) pathways in HNSCC using GSCALite.
