Figure 7

From: Integrated computational analysis reveals HOX genes cluster as oncogenic drivers in head and neck squamous cell carcinoma

Figure 7

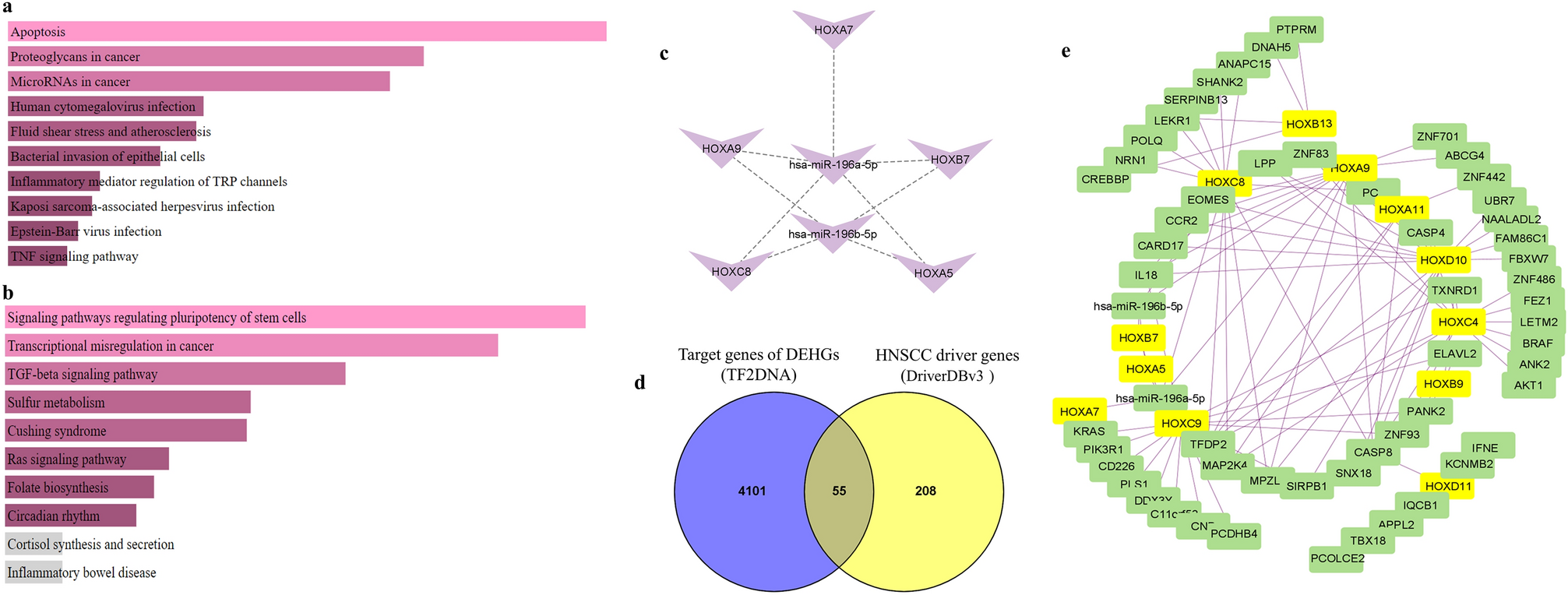

Functional role of DEHMs and their interactive network: (a) KEGG pathway analysis of upregulated targets of DEHMs. (b) KEGG pathway analysis of downregulated targets of DEHMs. (c) Interaction between DEHGs and DEHMs. (d) Venn diagram showing the targets of DEHGs driving HNSCC. (e) Functional regulatory network of entire HOX cluster genes, their targets, and DEHMs constructed using Cytoscape. The network includes nodes representing DEHGs (yellow squares) and interaction targets (green squares) derived from publicly available databases.
