Figure 3 | Scientific Reports

Figure 3

From: Association between tumor 18F-fluorodeoxyglucose metabolism and survival in women with estrogen receptor-positive, HER2-negative breast cancer

Figure 3The alternative text for this image may have been generated using AI.

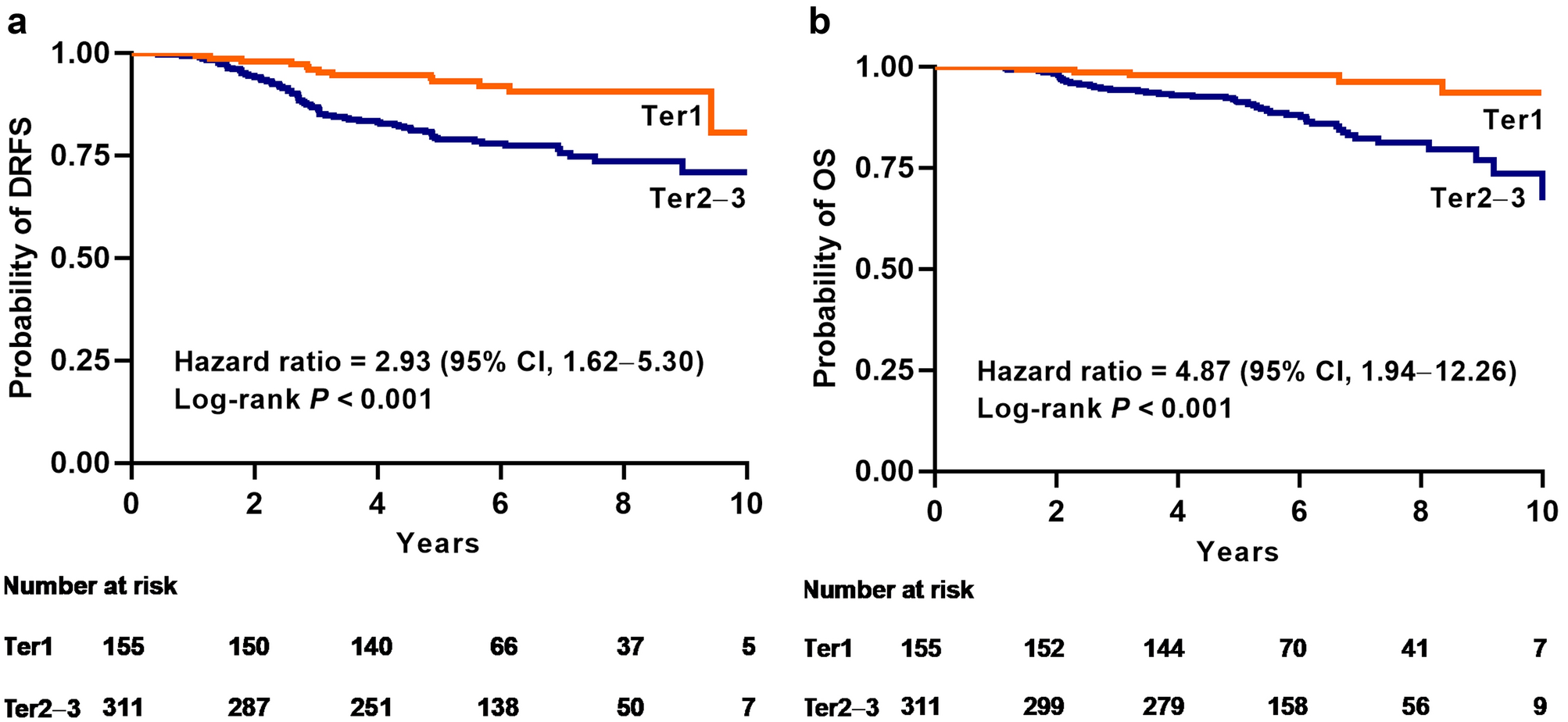

Kaplan–Meier curves of DRFS and OS by tertiles of the maximum standardized uptake value of 18F-fluorodeoxyglucose. The middle and high tertile categories were combined into one high-risk group because their outcome was significantly different from the low tertile. (a) The middle and high tertiles of SUV were prognostic for DRFS (hazard ratio 2.93, 95% confidence interval [CI] 1.62–5.30; P < 0.001). The 8-year DRFS rates were 90.7% (95% CI 85.5–96.1%) for those in the low tertile of maximum SUV vs. 73.7% (95% CI 68.0–79.8%) for those in the middle and high tertiles of maximum SUV. (b) The middle and high tertiles of SUV were prognostic for OS (hazard ratio 4.87, 95% CI 1.94–12.26; P < 0.001). The 8-year OS rates were 96.4% (95% CI 92.6–100%) for those in the low tertile of maximum SUV vs. 81.3% (95% CI 76.0–87.0%) for those in the middle and high tertiles of maximum SUV. DRFS distant relapse-free survival, OS overall survival, SUV standardized uptake value, Ter1 low tertile, Ter2–3 middle and high tertiles.
