From: Transverse Kerker effect in all-dielectric spheroidal particles

Figure 1

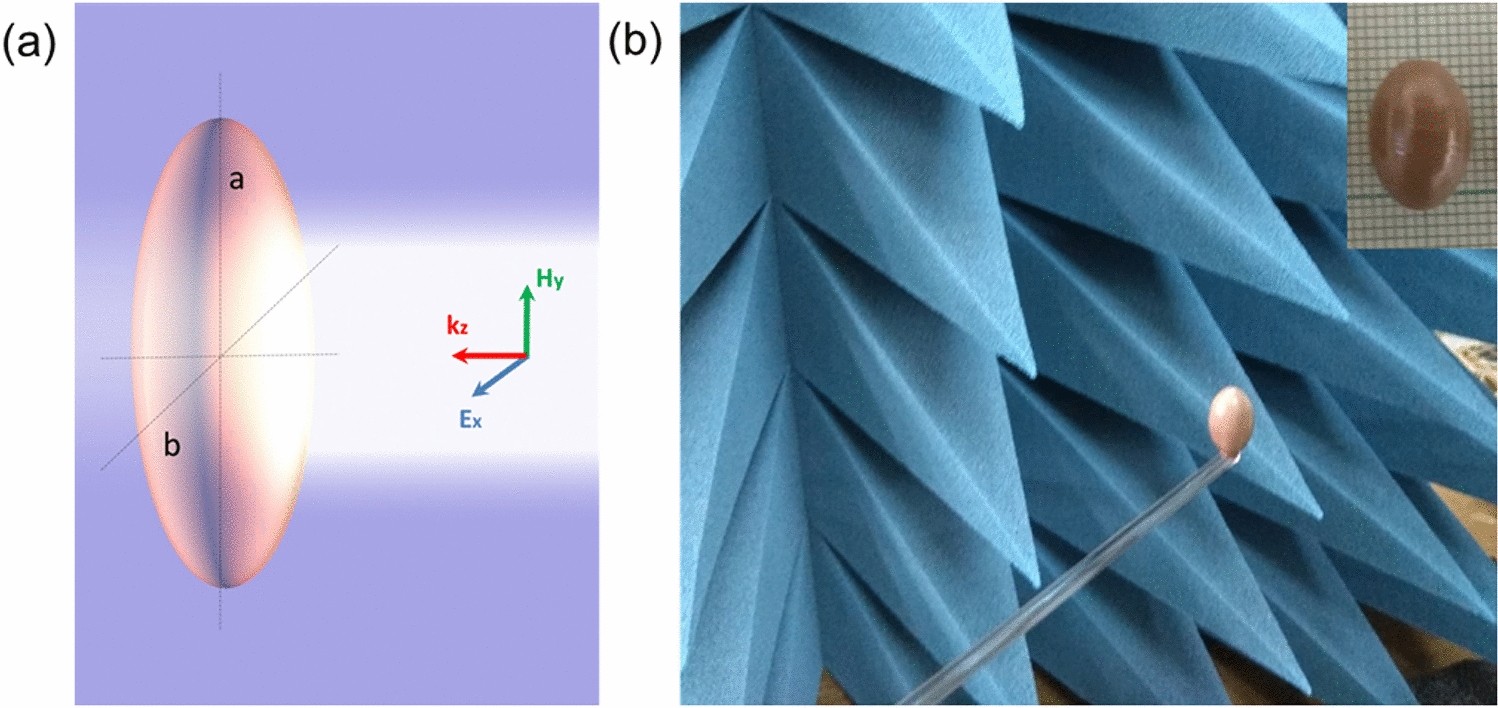

(a) Illustration of high-index dielectric prolate spheroidal particle with dielectric permittivity \(\varepsilon \)=150 and the major and minor semiaxes of a and b, respectively. Linearly polarized plane wave is impinging laterally with vector E parallel to minor axis. (b) Experimental sample of ceramic spheroidal particle with a = 19.5/2 mm and b = 12.5/2 mm in anechoic chamber. The inset shows picture of sample.
