From: Effects of planted pollinator habitat on pathogen prevalence and interspecific detection between bee species

Figure 1

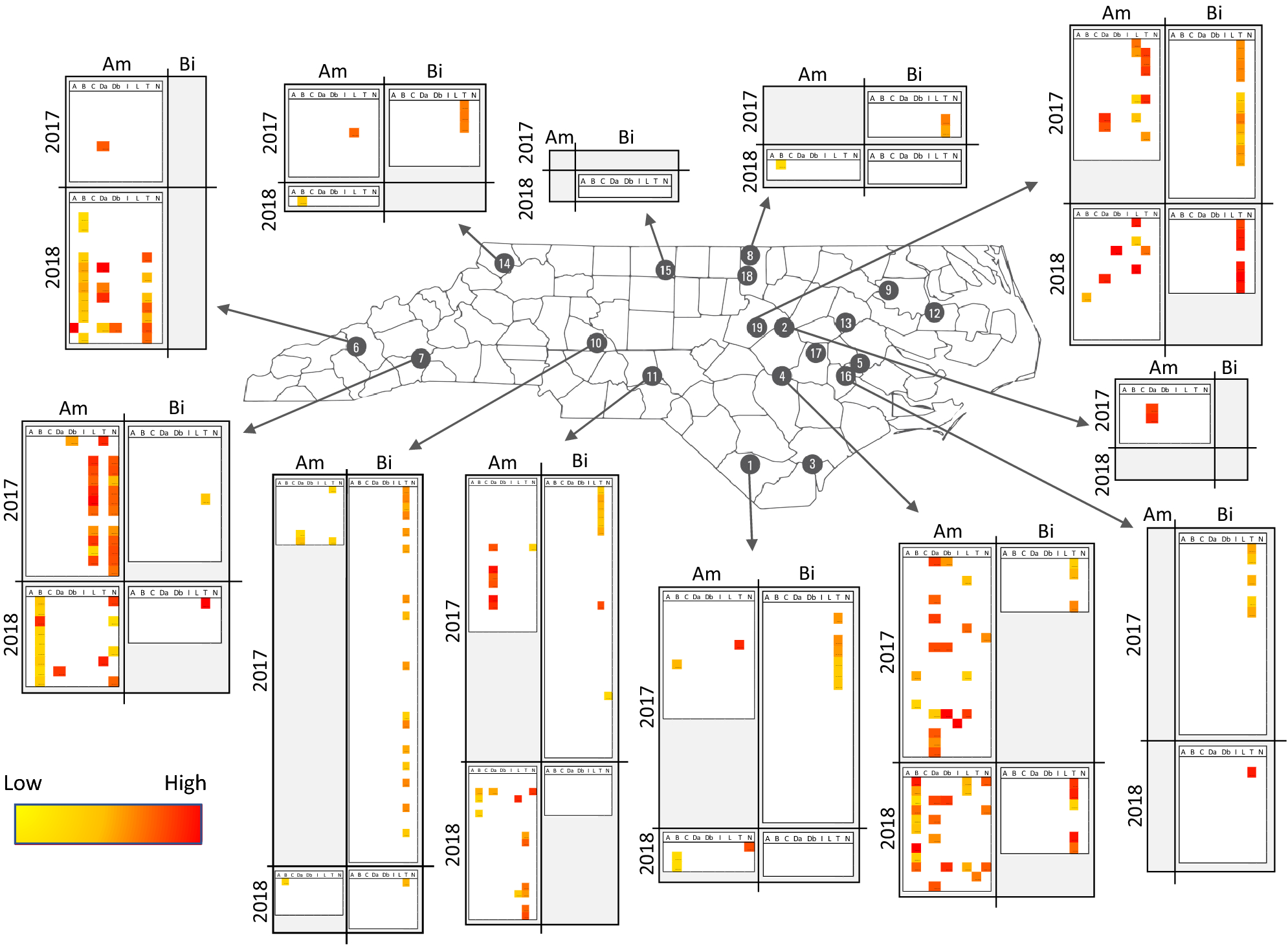

Visual comparison of viral matrices. Each block shows samples from a particular location with A. mellifera (Am) [on the left-hand matrix of each block] and B. impatiens (Bi) [on the right-hand matrix]. Samples from 2017 are displayed at the top of each block and 2018 on the bottom. Each row represents an individual sample, and each column represents a different target listed in alphabetical order (A = ABPV; B = BQCV; C = CBPV; Da = DWVa; Db = DWVb; I = IAPV; L = LSV; T = Try. spp.; and N = Nos. spp.). Relative intensity is represented with a color gradient from low (bright yellow) to high (bright red). This figure was created using Adobe Illustrator, Microsoft Excel, and Microsoft Word. Thank you to Kirsten Benson for creating the base map.
