Figure 6
From: The influence of sea ice on the detection of bowhead whale calls

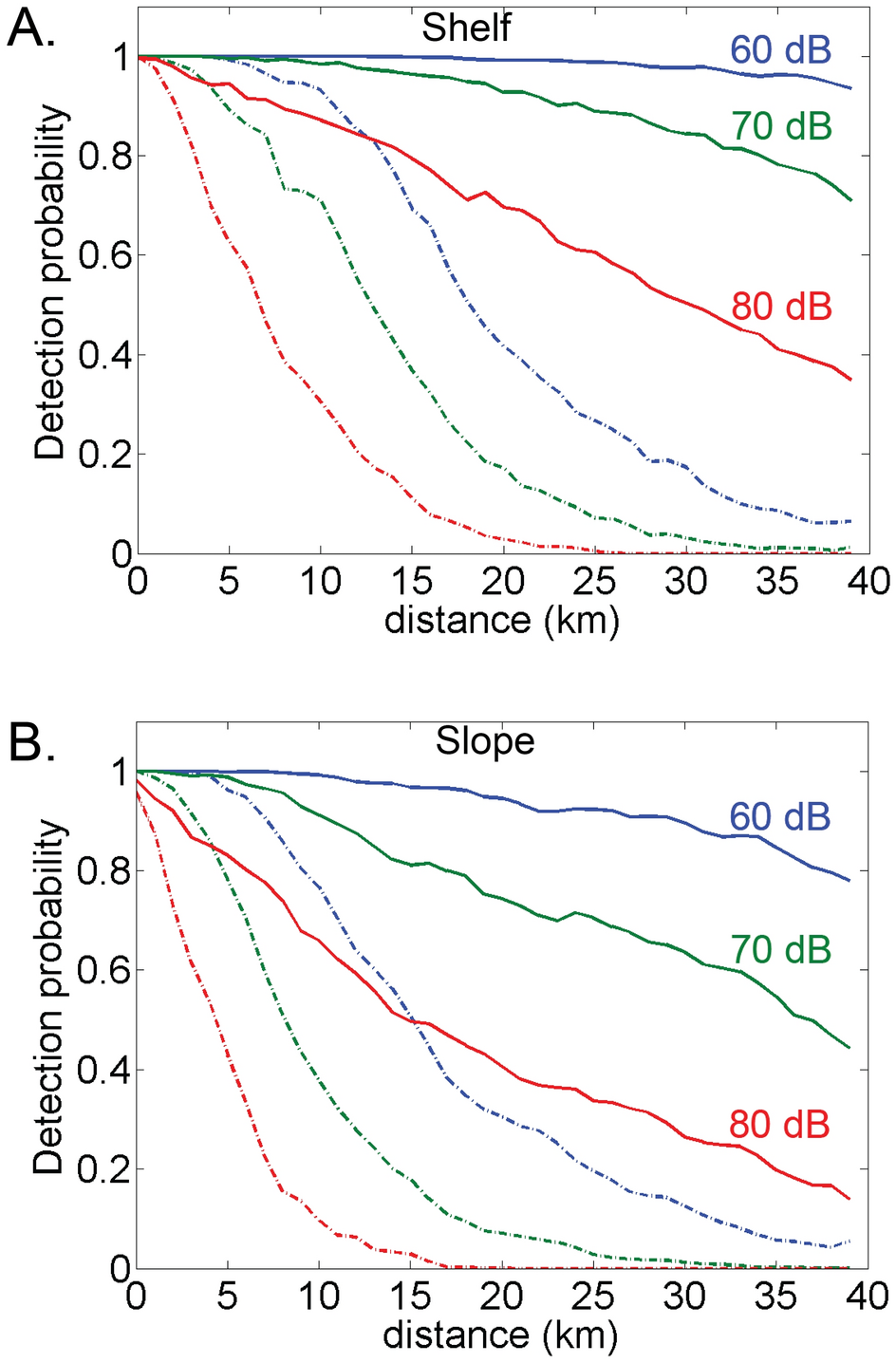

Detection probability as a function of distance for (A) shelf and (B) slope sites at ambient sound pressure level 60, 70, and 80 dB re 1 μPa2 (blue, green, and red lines) with open-water (solid line) and ice-covered (dashed line) conditions.
