From: Unveiling host–guest–solvent interactions in solution by identifying highly unstable host–guest configurations in thermal non-equilibrium gas phase

Figure 1

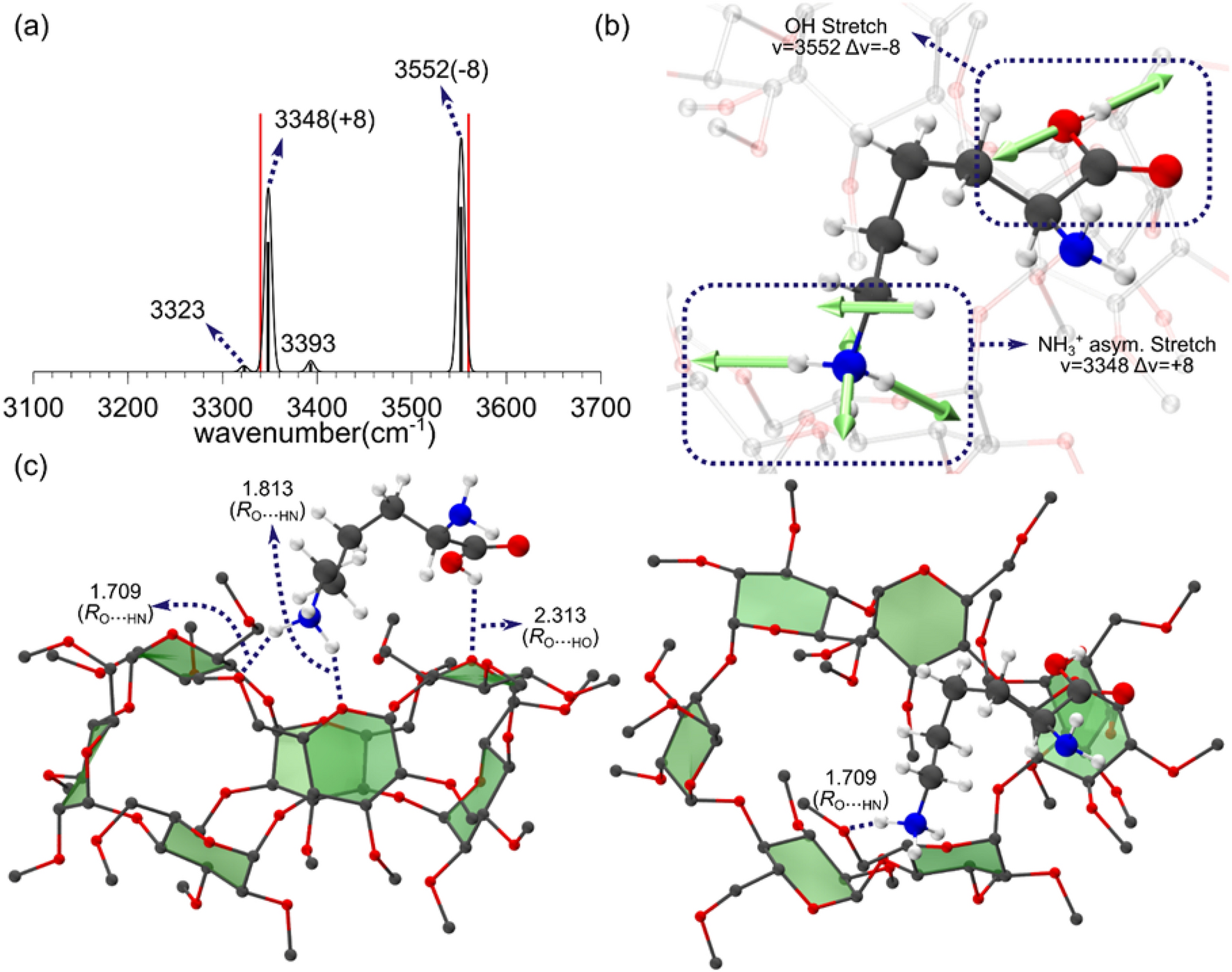

(a) Theoretical IR spectrum, (b) normal modes, and (c) two views of the structure of Complex I of gas phase perm β-CD–protonated L-Lys. Red sticks represent the positions of experimental IRMPD bands. Hydrogen atoms in permetylated β-cyclodextrin are omitted for clarity. Red: oxygen, blue: nitrogen, gray: carbon, white: hydrogen.
