Figure 2

From: In vitro anti-tuberculosis effect of probiotic Lacticaseibacillus rhamnosus PMC203 isolated from vaginal microbiota

Figure 2

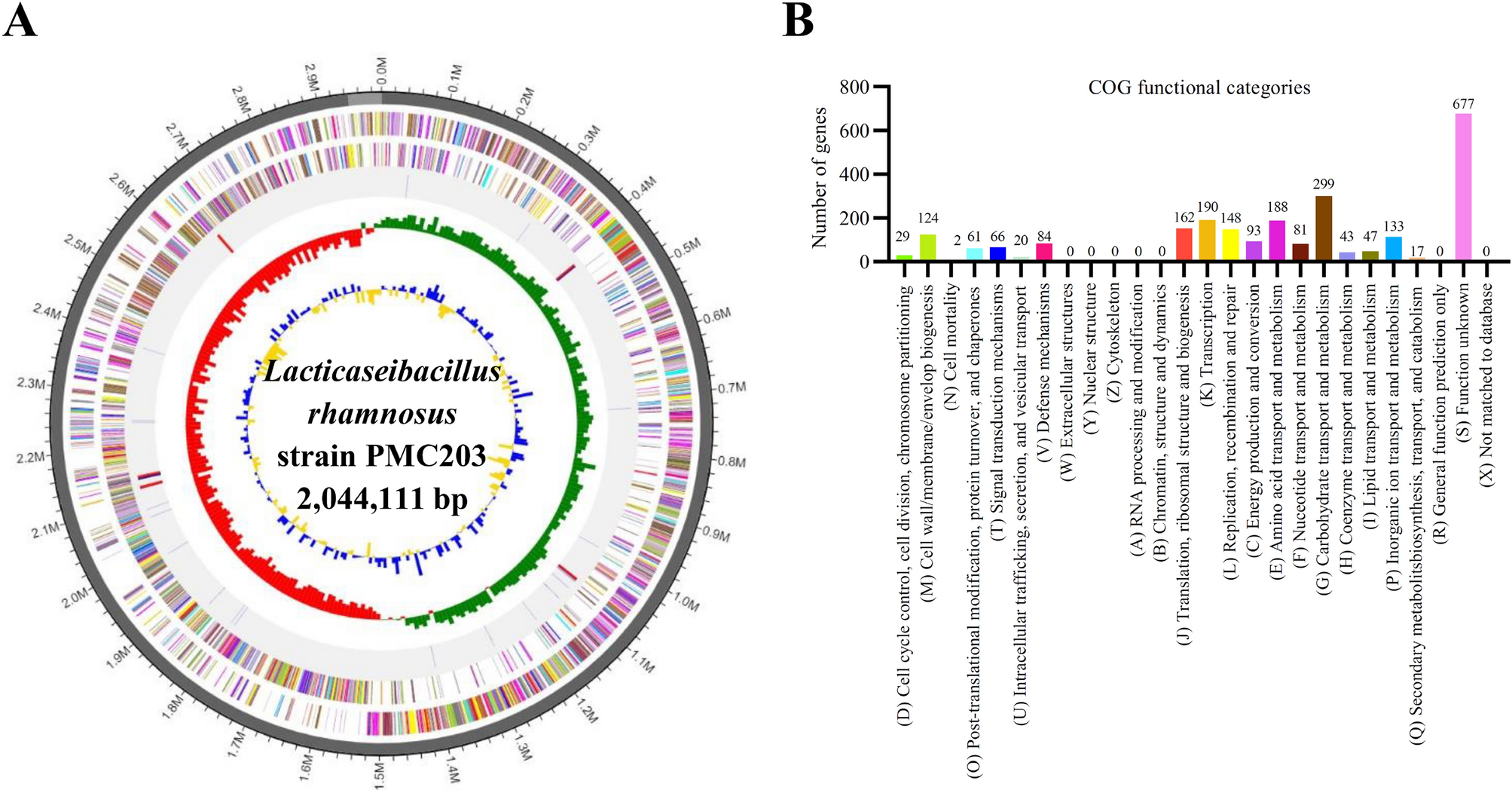

High-throughput genome sequencing results of L. rhamnosus strain PMC203. (A) Circularmap of L. rhamnosus PMC203 strain genome. Antisense and sense strands (colored according to COG categories) and RNA genes (red, tRNA; blue, rRNA) are shown from the outer periphery to the center. Inner circles show the GC skew, with yellow and blue indicating positive and negative values, respectively, and the GC content is indicated in red and green. (B) Relative abundance of cluster of orthologous groups (COG) functional categories of genes.
