Figure 5

From: In vitro anti-tuberculosis effect of probiotic Lacticaseibacillus rhamnosus PMC203 isolated from vaginal microbiota

Figure 5

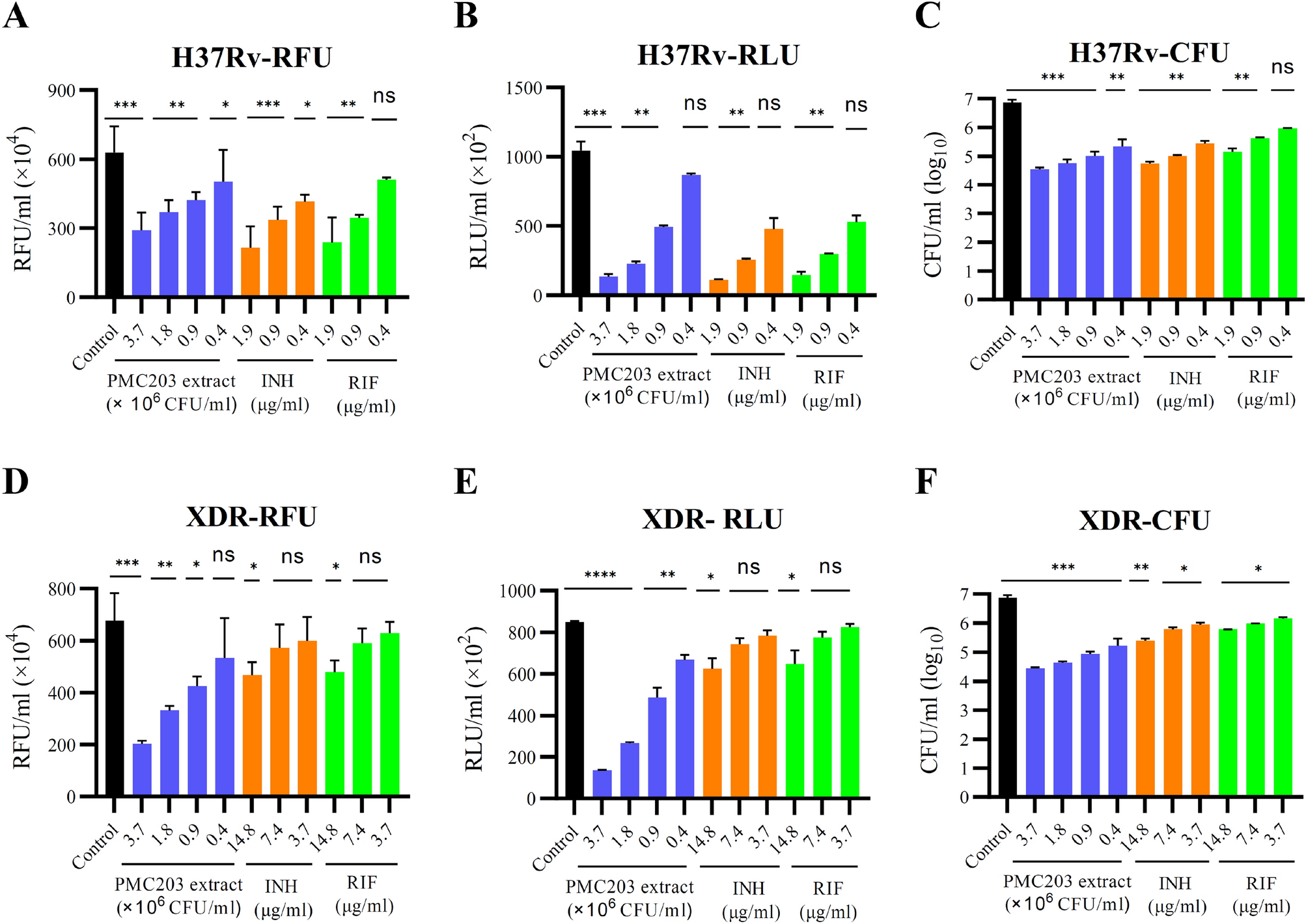

Antimicrobial activities of PMC203 against M. tb. The inhibitory effect of PMC203 extract against (A–C) H37Rv or (D–F) XDR strains was evaluated. Mycobacterial susceptibility was checked by (A,D) resazurin assay as RFU/ml (relative fluorescence unit per ml), by (B,E) microbial cell viability assay as RLU/ml (relative luminescence unit per ml), and by (C,F) CFU quantification assay as CFU/ml. These experiments were performed three times in triplicate. Values are expressed as mean values and standard deviations. *Statistical significance with controls were determined using Graph Pad Prism 9.1.1, one-way ANOVA (*p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001).
