Figure 4
From: Noise resilient leaky integrate-and-fire neurons based on multi-domain spintronic devices

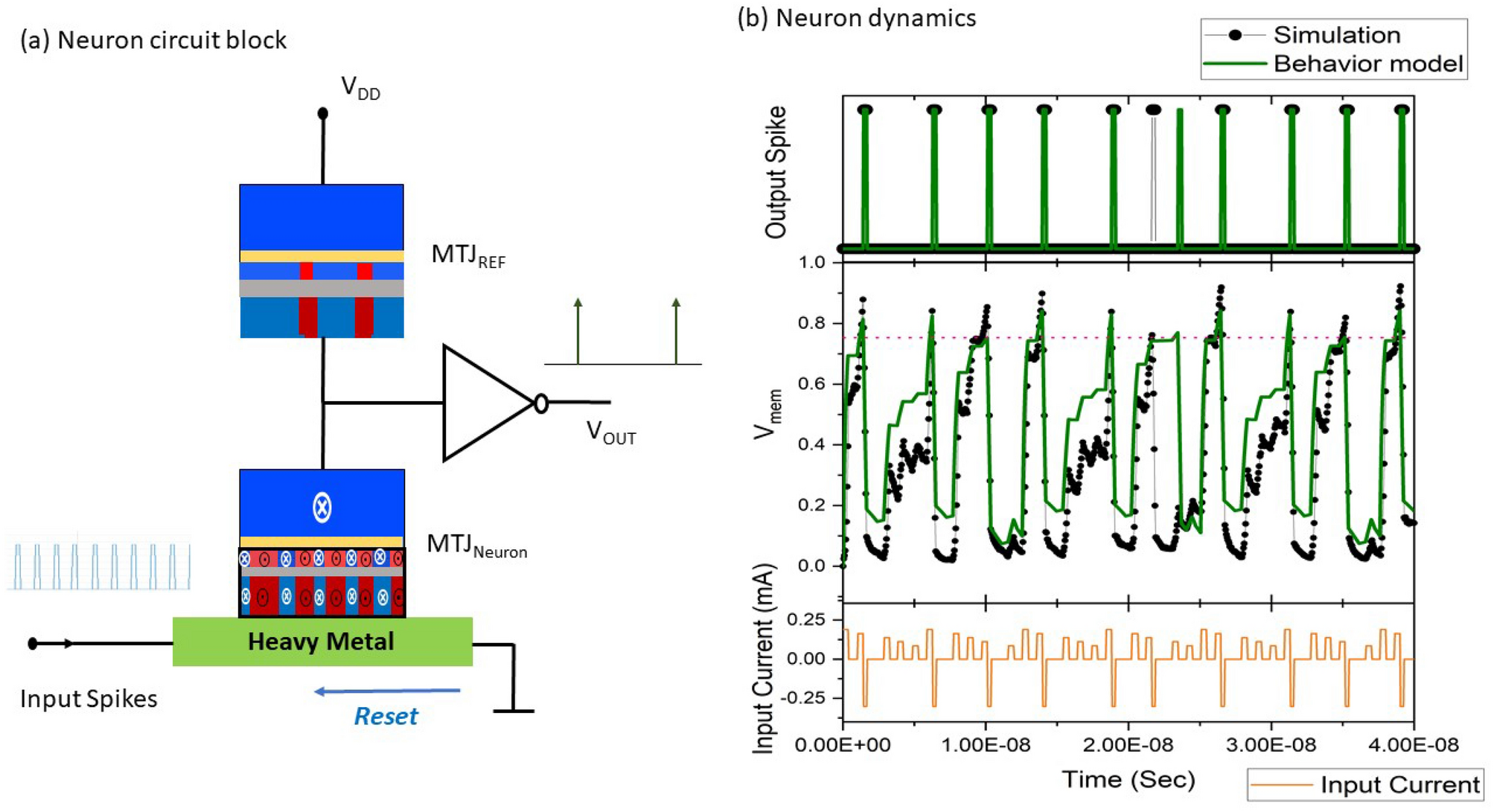

(a) The spiking neuron circuit block incorporating the proposed multi-domain SOT-MTJ. (b) Demonstration of leaky integrate and fire dynamics in micro-magnetic simulation. The spiking dynamics is also reproduced by the behavior model. The firing threshold of \(V_{mem}\) is set at 0.75.
