Figure 7
From: Determination of sub-ps lattice dynamics in FeRh thin films

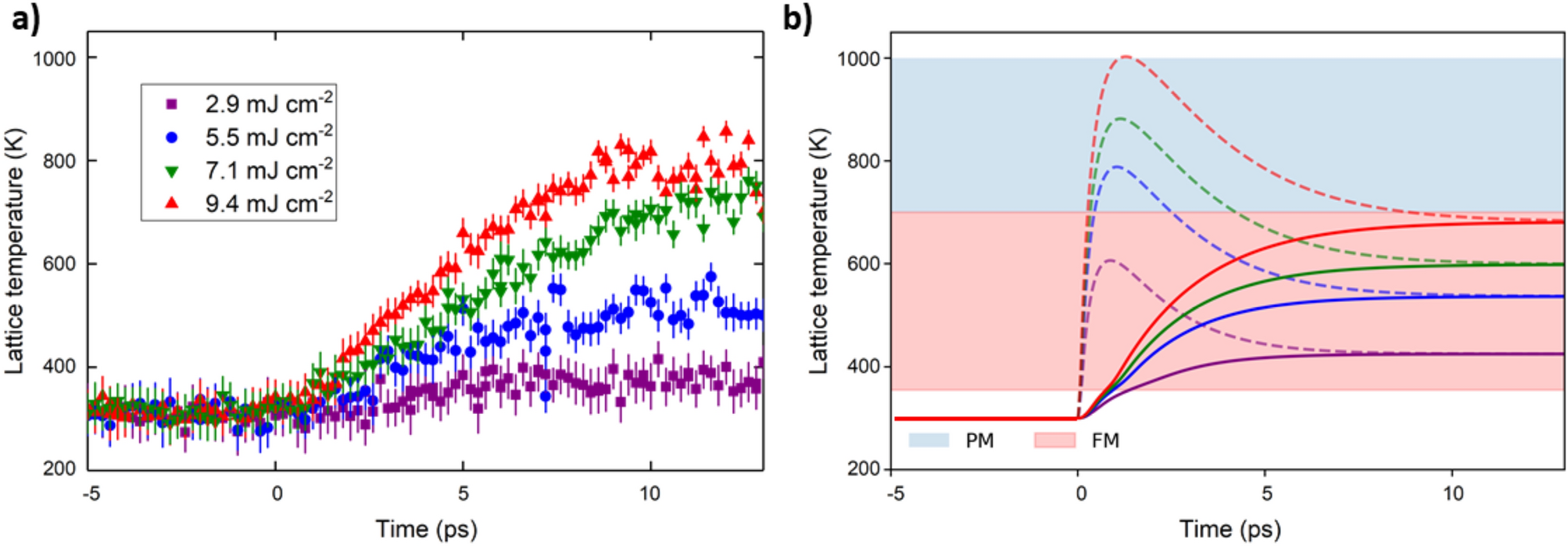

Transient Lattice Temperature—(a) Lattice temperature as a function of pump–probe delay based on the intensity of the transient XRD peaks. The extracted Debye temperature, ΘD of FM FeRh was used to estimate the transient temperature. The uncertainty in the lattice temperature is a combination of the standard error in the transient intensity and uncertainty from the DWF fit procedure. (b) The evolution of the lattice temperature as derived from the hot phonon model of electron–phonon coupling. Dotted lines refer to the transient phonon states which are assumed to be a subset of the optical phonon modes, estimated to be 15% of the total phonon population. The full lines indicate the average lattice temperature when the entire phonon system is considered. This model does not consider heat dissipation from the excitation centre.
