Figure 5

From: Partial oxidation of methane to methanol on boron nitride at near critical acetonitrile

Figure 5The alternative text for this image may have been generated using AI.

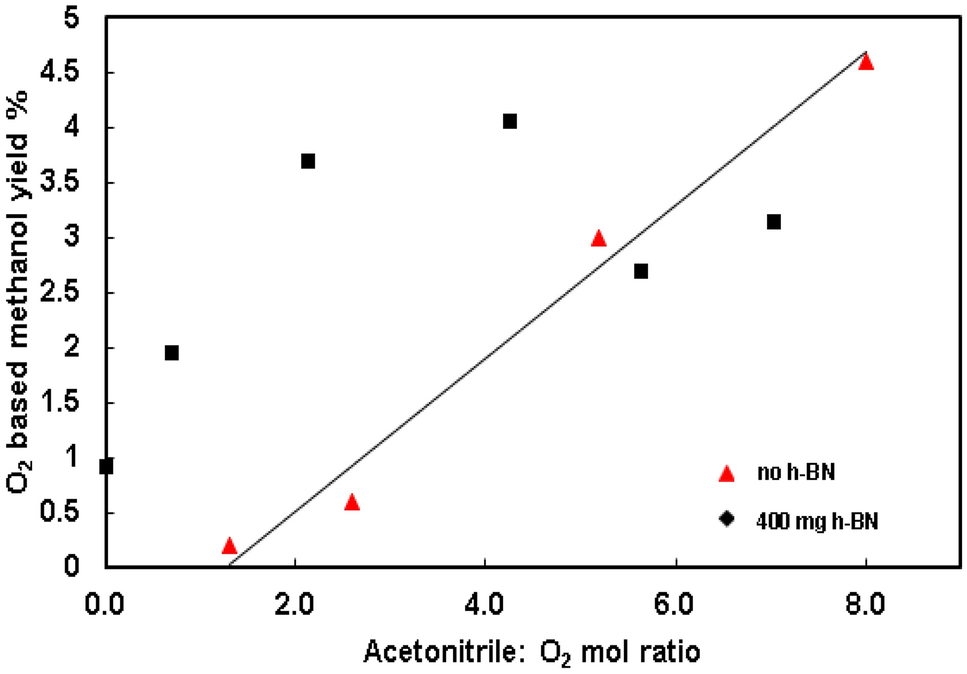

Variation of O2 based methanol yield with acetonitrile: O2 ratio and boron nitride loading. The graph does not illustrate 2.30: 1 h-BN to oxygen molar ratio, 8.2 MeCN: O2 ratio reaction which resulted in 17% yield. All runs were conducted with the specified amount of BN, cold feed; 118 mmol of CH4, 7 mmol of O2, 163 mmol of He. The amount of acetonitrile was varied (0 mmol, 19 mmol, 28 mmol, 57 mmol, 76 mmol, 95 mmol) and heated to 275 °C, with no dwell time, and 60 rpm stirring.
