Figure 2

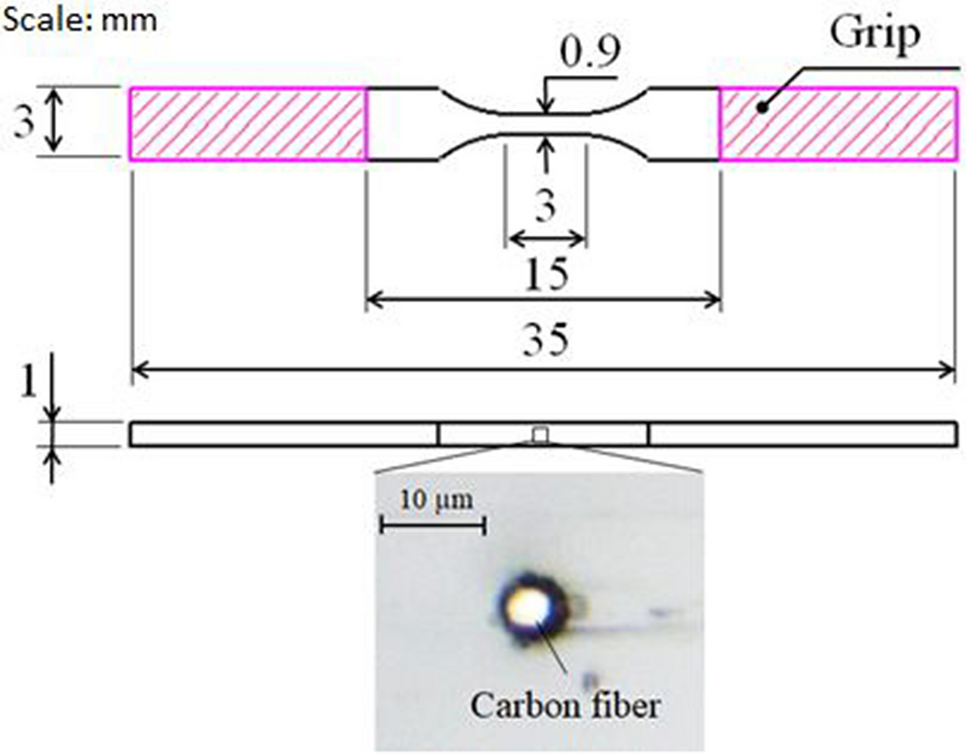

Dimensions of a dumbbell-shaped epoxy sample with a single carbon fiber embedded in the transverse direction. An image of a single carbon fiber observed under a high-magnification digital microscope.
Figure 2 | Scientific Reports
Dimensions of a dumbbell-shaped epoxy sample with a single carbon fiber embedded in the transverse direction. An image of a single carbon fiber observed under a high-magnification digital microscope.
