Figure 8

From: X-ray nanoimaging of a transversely embedded carbon fiber in epoxy matrix under static and cyclic loads

Figure 8The alternative text for this image may have been generated using AI.

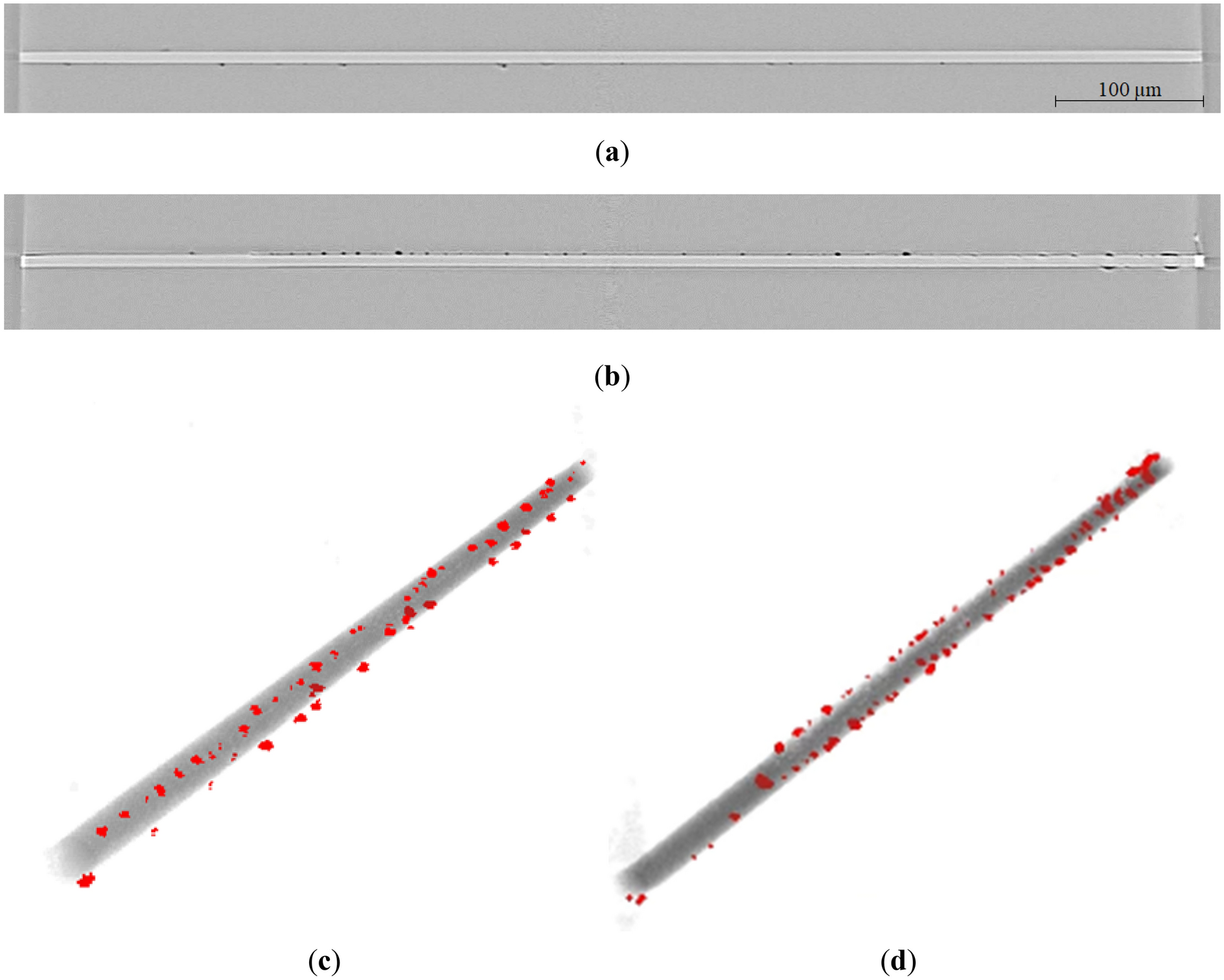

Reconstructed images obtained by micro-CT (a) before loading and (b) under a stress of 50 MPa, with the 3D image of the carbon fiber extracted using binarization process (c) before loading and (d) under a stress of 50 MPa. The empty spaces in the epoxy matrix are represented in red, and interfacial debonding was not clearly detected.
