Figure 3

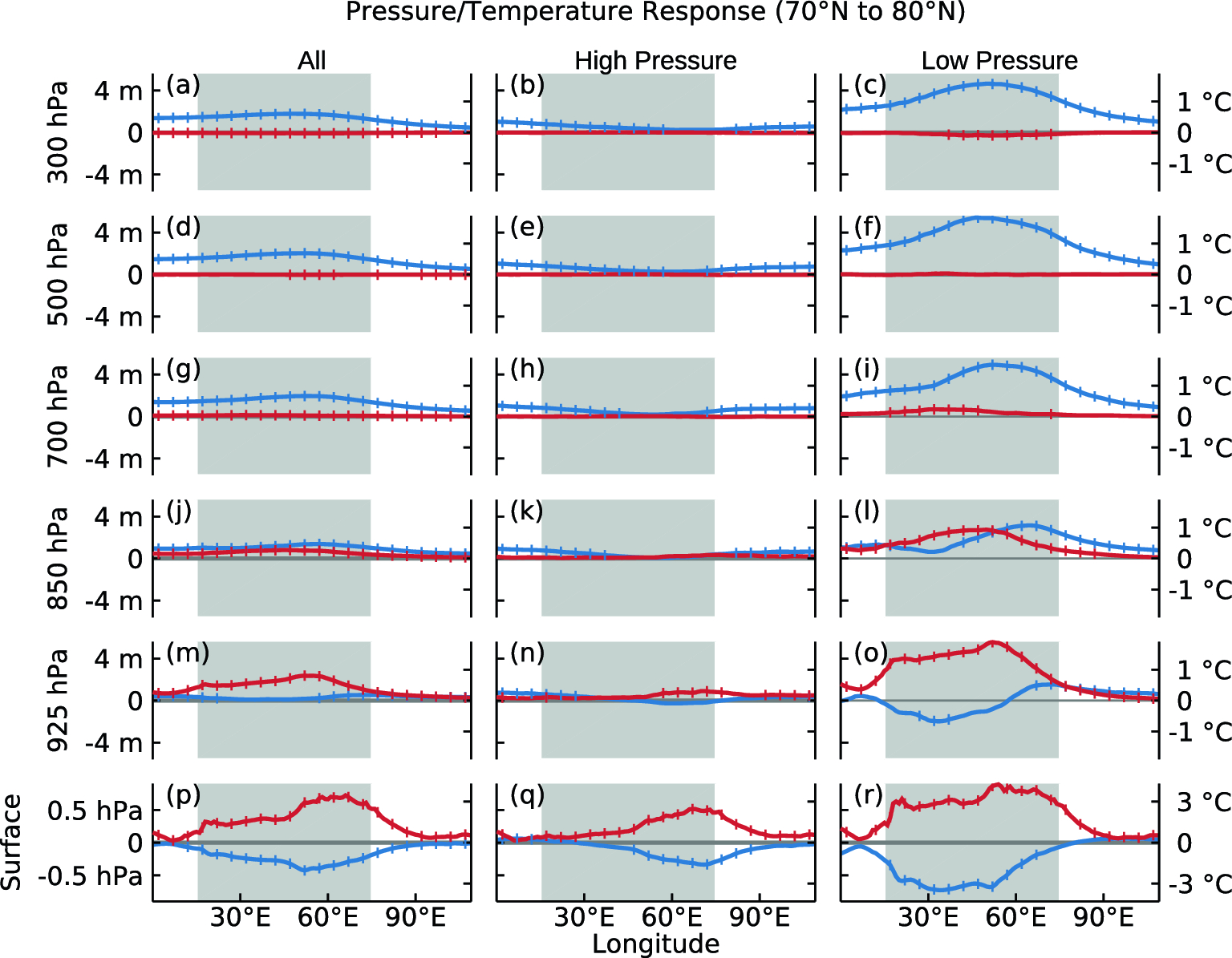

Zonal structure near the Barents Sea region (averages for 70–80°N) for all (a, d, g, j, m, p), “high-pressure” (b, e, h, k, n, q), and “low-pressure” (c, f, i, l, o, r) cases. Red lines indicate temperature response. Blue lines indicate surface pressure responses at surface level (p, q, r) and geopotential height responses in the atmosphere (a–o). The left y-axes are surface pressure in hPa (p, q, r) and geopotential height in meters (a–o). The right y-axes are temperature, and note that the scale for surface (p, q, r) is different from that for atmopshere (a–o).
