Figure 5
From: Semiconducting hematite facilitates microbial and abiotic reduction of chromium

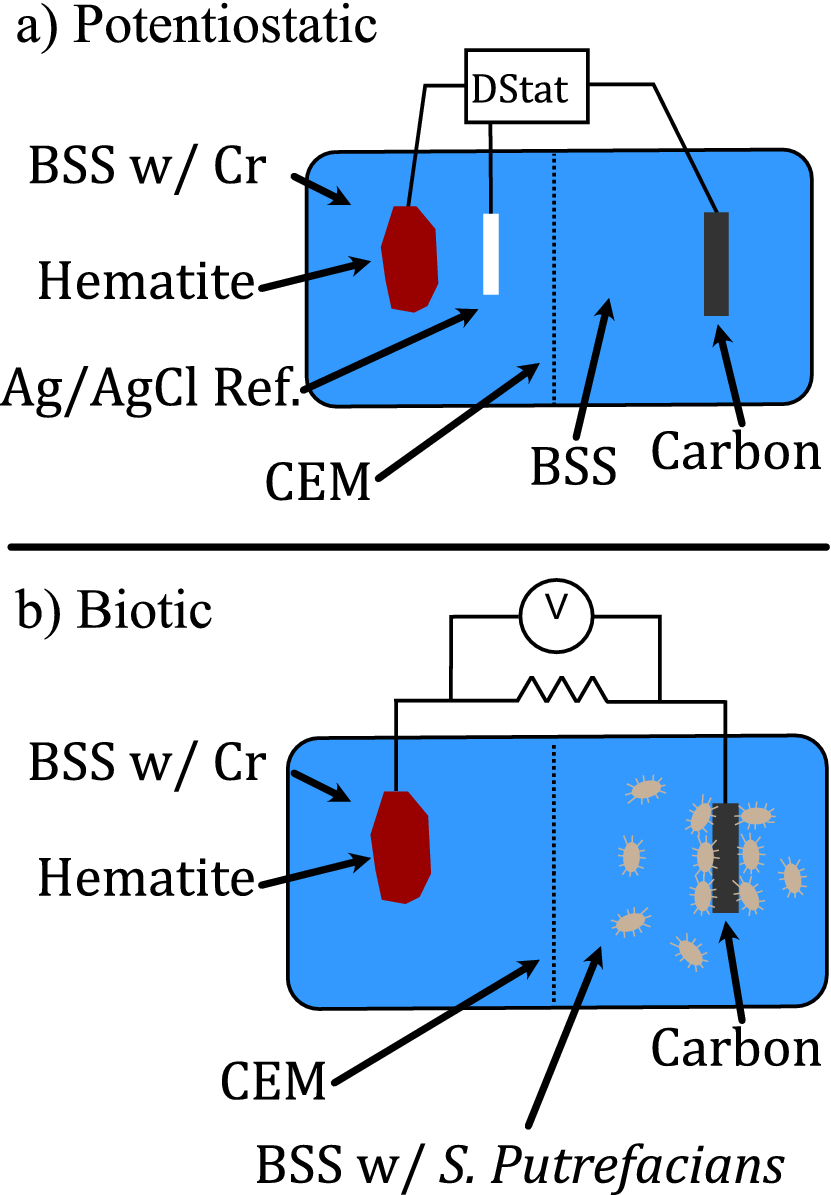

Experimental schematics of electrochemical setup with a cation exchange membrane (CEM). (a) Schematic of potentiostatic experiments. (b) Schematic of biotic experiment using S. putrefaciens.
