Figure 2
From: Effect of simultaneous testing of two mice in the tail suspension test and forced swim test

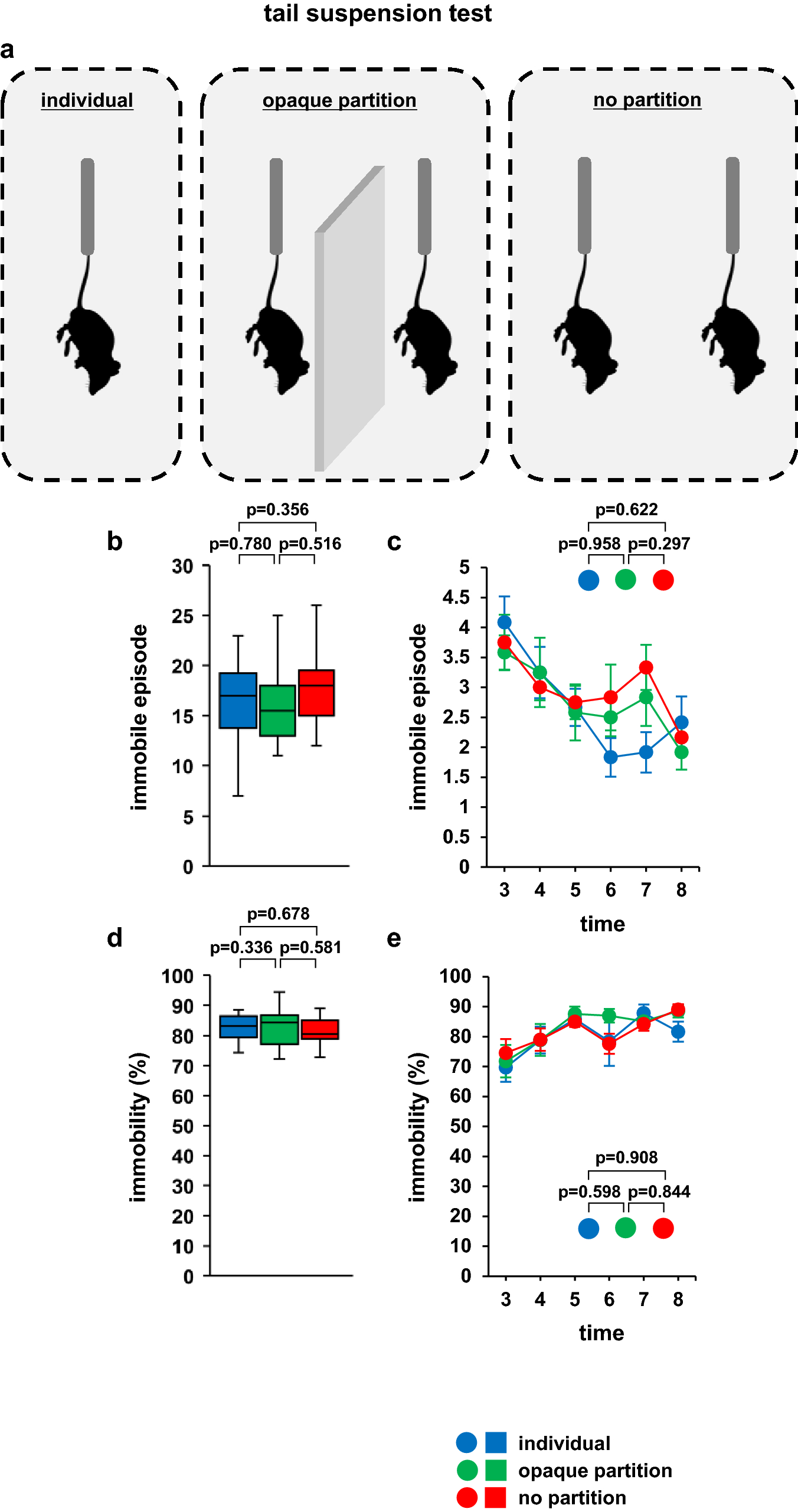

Simultaneous tail suspension testing of two mice. (a) Schematic diagram of the experiment. Graphs showing the total number of immobility episodes (b) and the immobility episodes during each 1-min period (c). Graphs showing the total time spent immobile (d) and the proportion of time spent immobile during each 1-min period (e). All data are presented as box plots (b, d) or means ± standard errors (c, e). Statistical significance is represented by asterisks: *p < 0.05, +p < 0.1. The p values were calculated using one-way analysis of variance (analysis of variance [ANOVA] in (b) and (d) and two-way repeated-measures ANOVA in (c) and (e). SEM: standard error of the mean. individual: n = 10, opaque partition: n = 10, no partition: n = 10. Respective mean and SEM are listed in Table 1.
