Figure 2
From: Insulin signaling shapes fractal scaling of C. elegans behavior

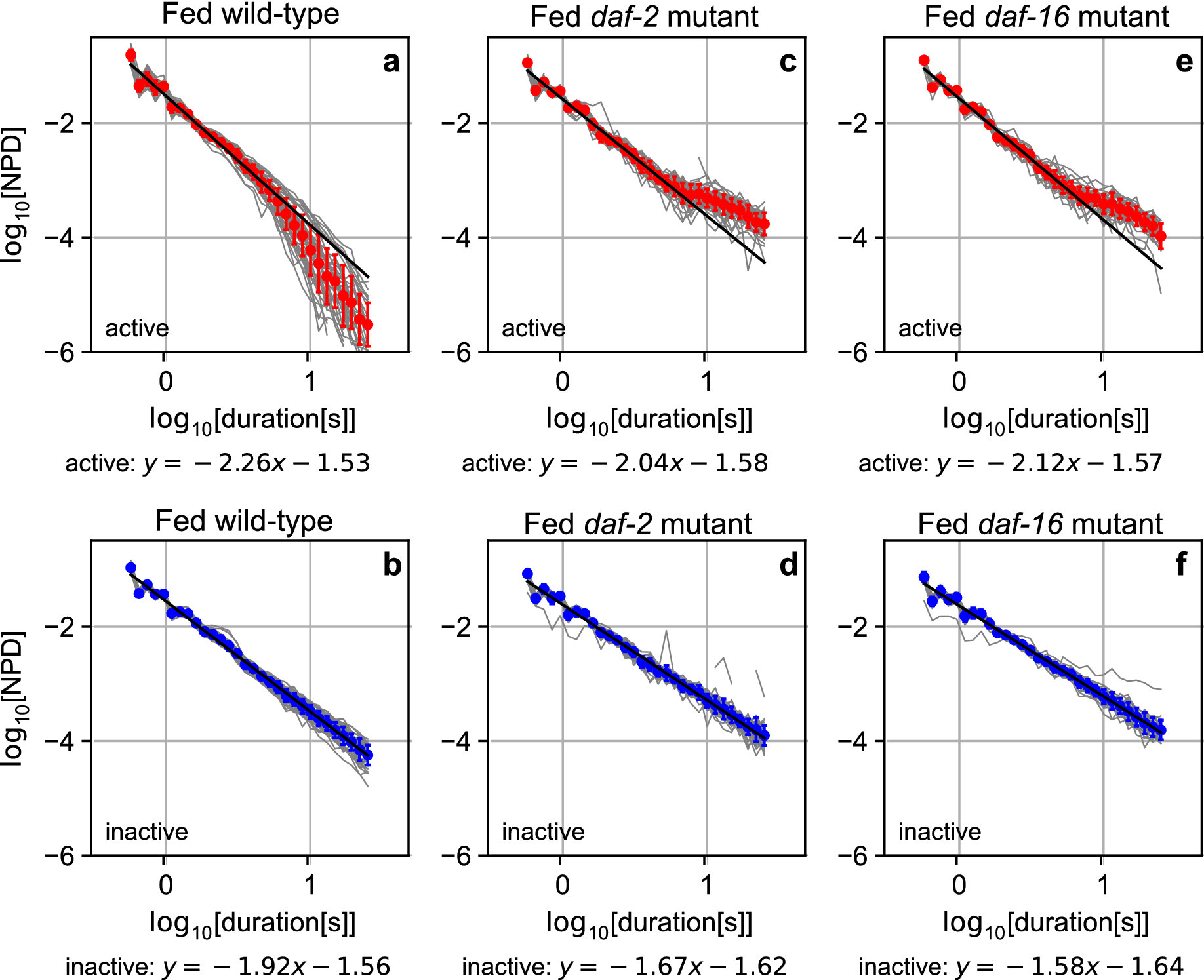

Power-law residence-time distributions of behavioral states of fed C. elegans Averaged normalized probability density distributions of active (red) and inactive states (blue) of fed wild-type (a,b), daf-2 (c,d), and daf-16 (e,f) animals among individual animals (grey), in log–log plot. Error bars represent standard deviations. Distributions for inactive state (b,d,f) were fit with linear function in the entire range in the residence time from − 0.5 to 1.5 on x-axis (black line). To visually track the presence of the exponential-like tail in the residence distributions for the active state (a,c,e), the distributions were fit with a linear function in the shorter range in the residence time from − 0.5 to 0.8 and were extrapolated to 1.5 on x-axis (black line).
