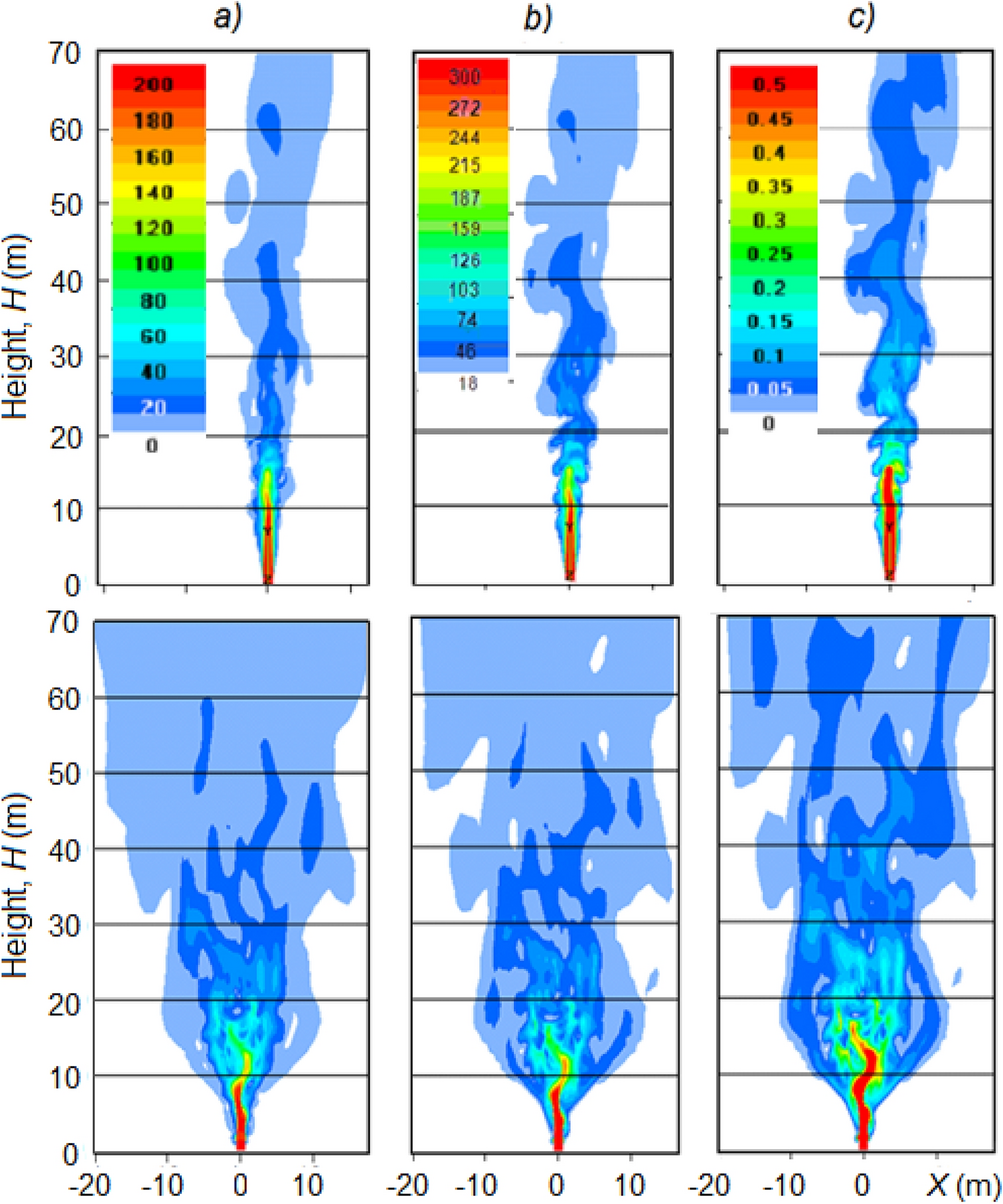

Figure 8

Vertical section of: (a) jet velocity W (m/s), (b) temperature T (^oC) (b), and (c) aerosol concentration C (g/m³) in windless atmosphere (U = 0 m/s) without inversion layers and γ = 6.5 °C/km, f = 45%. Top row without spraying of hygroscopic solutions, bottom row with spraying of solutions.
