From: Spatial–temporal distribution of total organic carbon and its transportation in the Jiulong River Estuary

Figure 1

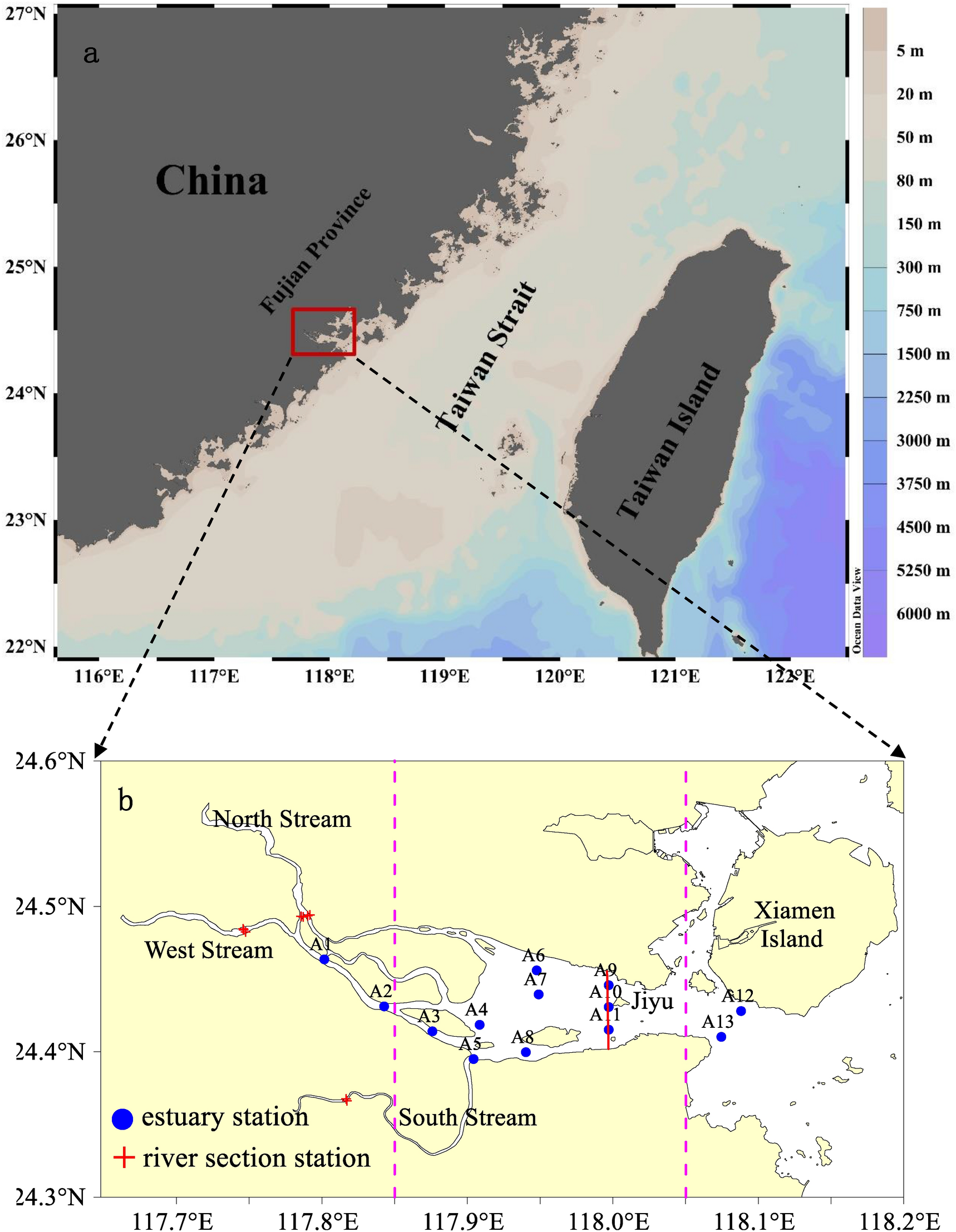

Maps of the (a) investigated area and (b) sampling stations in the Jiulong River Estuary (JRE). The satellite imagery in figure (a) was obtained from and drawn using the free software Ocean Data View (ODV 5.1.2) (Schlitzer, Reiner, Ocean Data View, https://odv.awi.de, 2018); figure (b) was created with Surfer, Version 10 (https://www.goldensoftware.com/products/surfer). Red dotted lines indicate the rough boundaries of the upper, middle, and lower reaches of the JRE.
