Figure 3 | Scientific Reports

Figure 3

From: The human “contaminome”: bacterial, viral, and computational contamination in whole genome sequences from 1000 families

Figure 3The alternative text for this image may have been generated using AI.

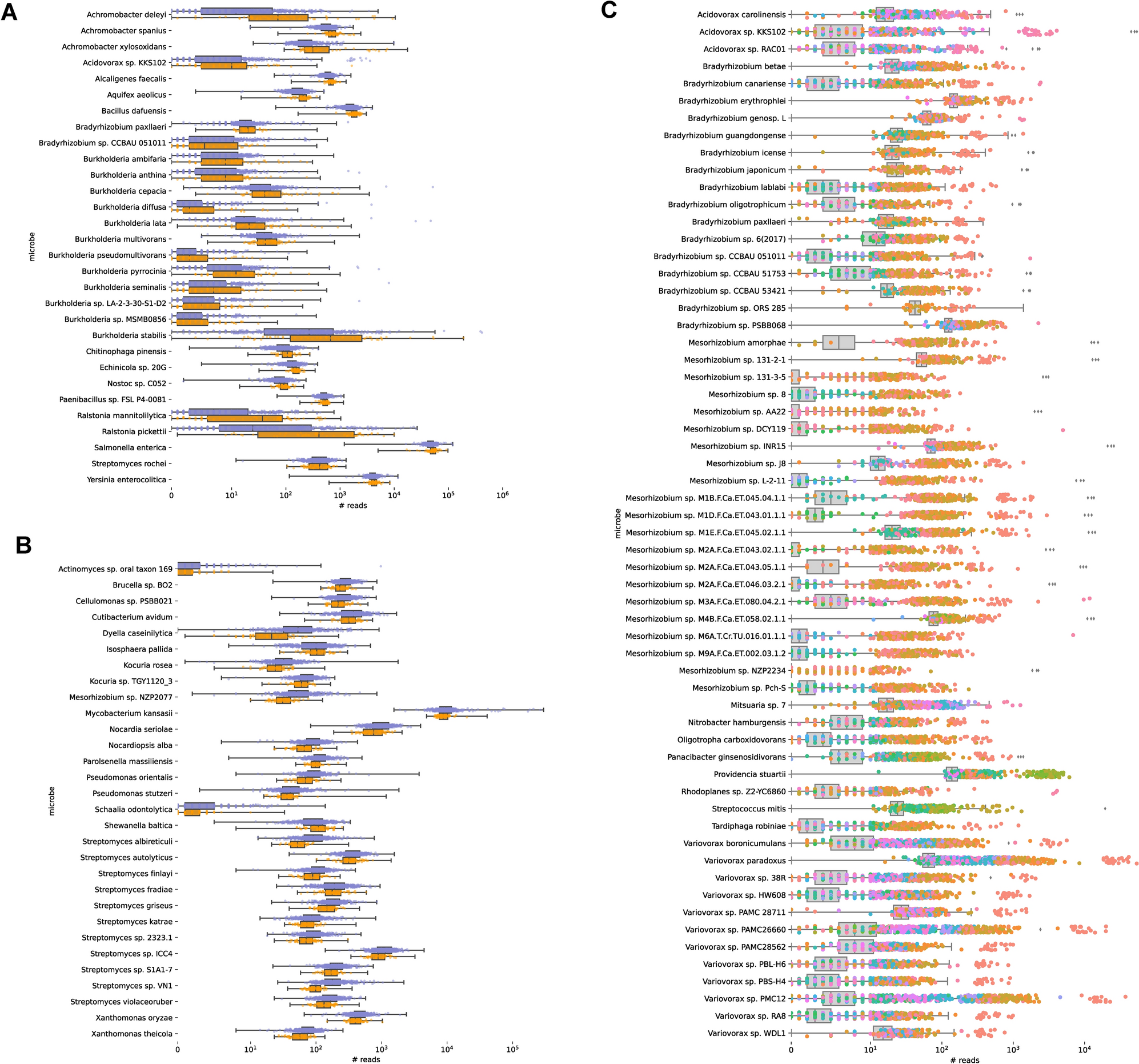

(A) Top 50 microbes most strongly associated with cell type per F-regression results, and more abundant in whole blood samples (orange) than LCL samples (purple). (B) Top 50 microbes most strongly associated with cell type per F-regression results, and more abundant in whole blood samples (orange) than LCL samples (purple). (C) Top 100 microbes most strongly associated with sequencing plate. Colors represent sequencing plates that had significantly higher abundances of a given microbe compared to the rest of the population. Samples from sequencing plates without significant enrichment of a microbe are captured in the grey box plots.
