Figure 4 | Scientific Reports

Figure 4

From: Enhanced magneto-optical rotation of probe field in thermal medium via spontaneous generated coherence

Figure 4The alternative text for this image may have been generated using AI.

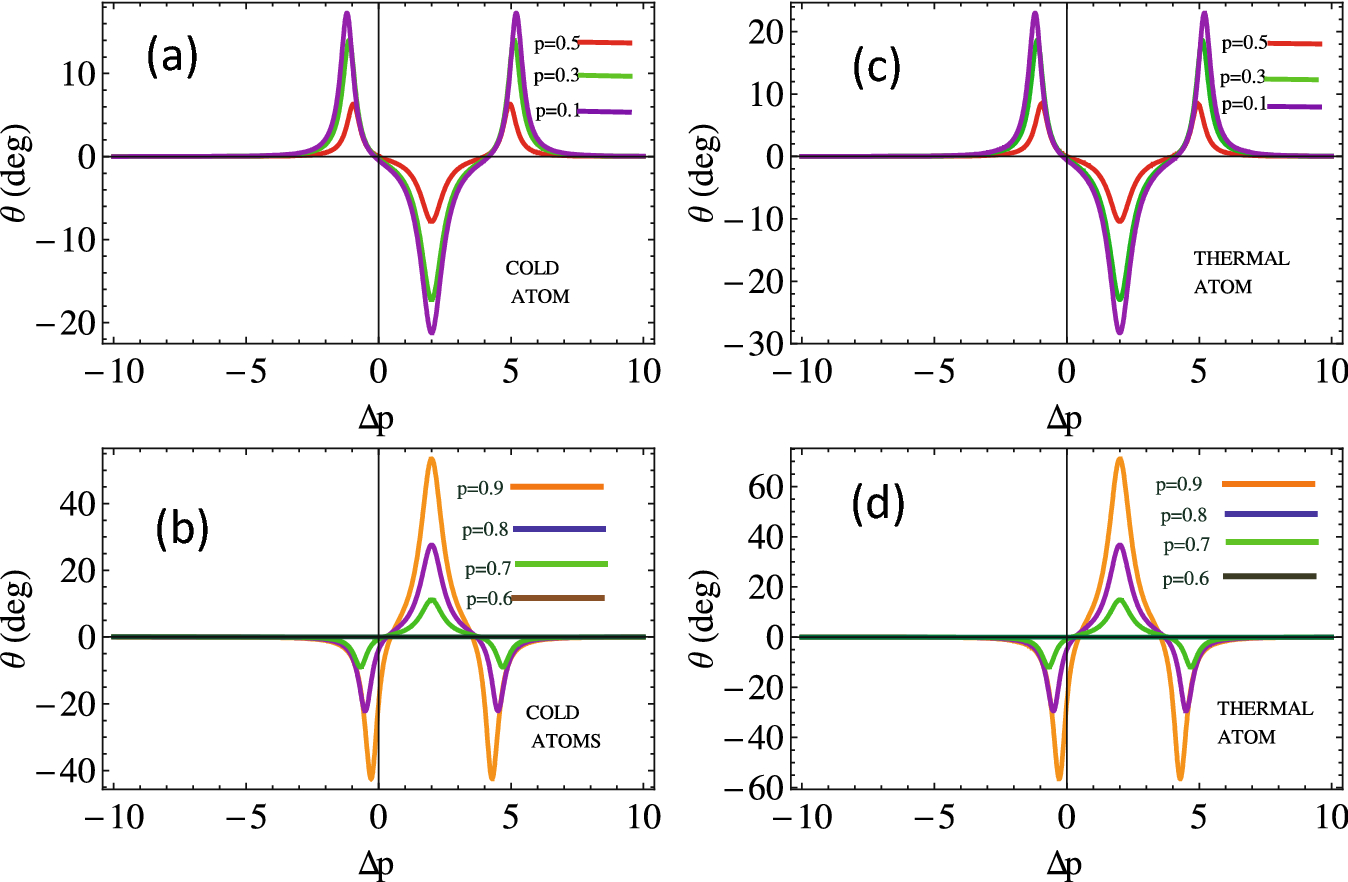

Magneto-optical rotation versus magnetic field detuning for cold atom kD = 0 (a), (c) and thermal atom \(kD = 50 \gamma\) (b), (d) w.r.t relative phase. The other parameters are \(\Omega _{1}=2.5, \Omega _{k}=2, p=0.9, \Delta _{p}=0, \Delta _{B}= 10 \gamma , \Delta _{c}=0, \Delta _{1}=0, \alpha =190 \gamma\).
