Figure 1
From: Muscle regeneration affects Adeno Associated Virus 1 mediated transgene transcription

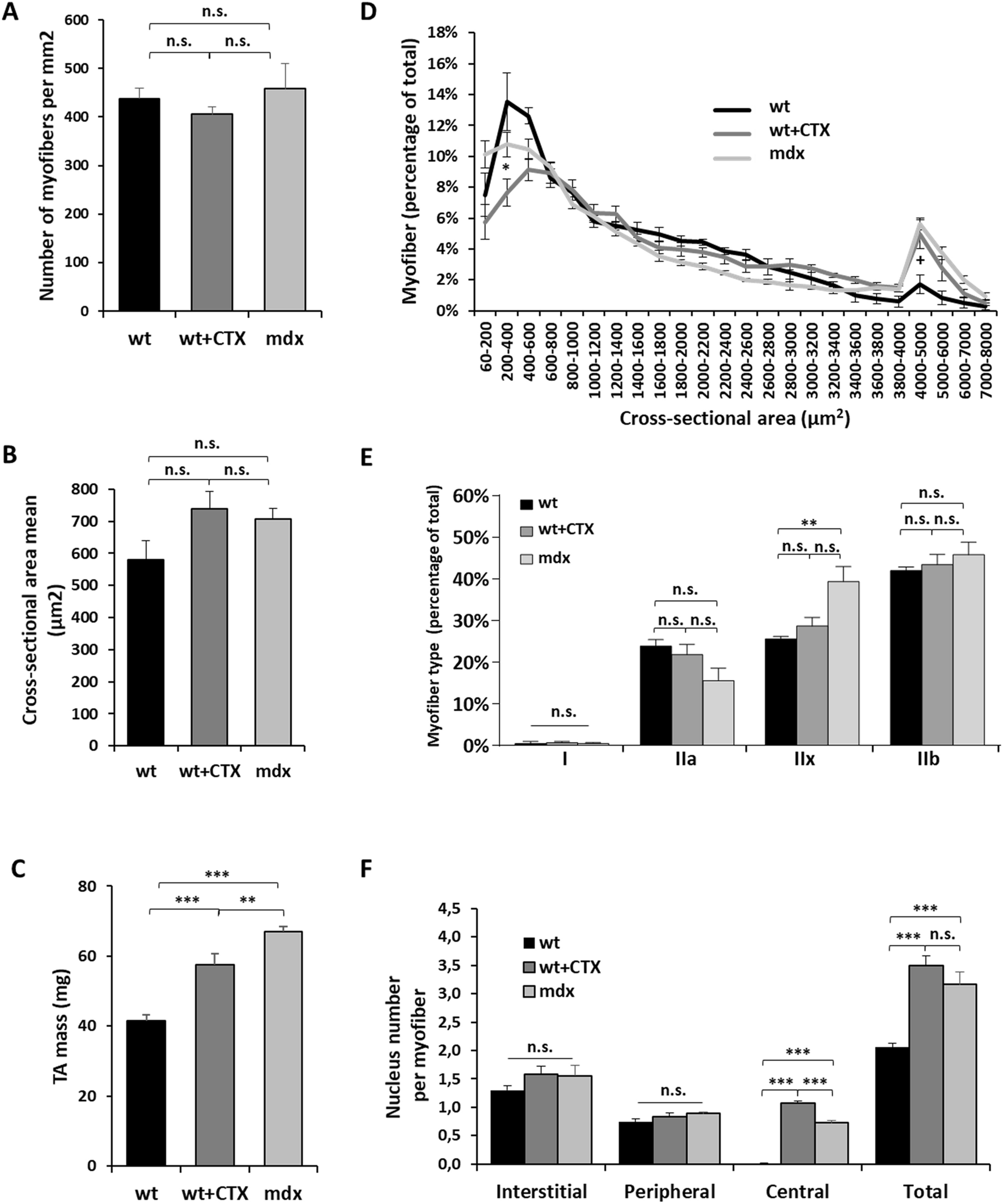

Description of cardiotoxin regenerated and mdx muscles. Tibialis anterior (TA) muscles of wild-type (wt) mice were injected or not with 0.5 nmol of cardiotoxin (CTX) to induce muscle regeneration. Six weeks after injury TAs were collected and analysed. (A) Number of myofibers per mm2 of wt, wt + CTX and mdx muscles. (B) Quantification of cross-sectional area (CSA) mean. (C) Muscle mass. (D) Distribution of myofiber CSA. (E) Percentage of fibers expressing I, IIa, IIx and IIb myosin heavy chain isoforms. (F) Counts of muscle nuclei classified into interstitial, peripheral and central localization. The data represent the mean values of four TAs per group ± SEM. n.s., non-significant, *P ≤ 0.05, **P ≤ 0.01, ***P ≤ 0.001. For D, *P ≤ 0.05 between wt + CTX group and wt or mdx groups, + P ≤ 0.05 between wt group and wt + CTX or mdx groups.
