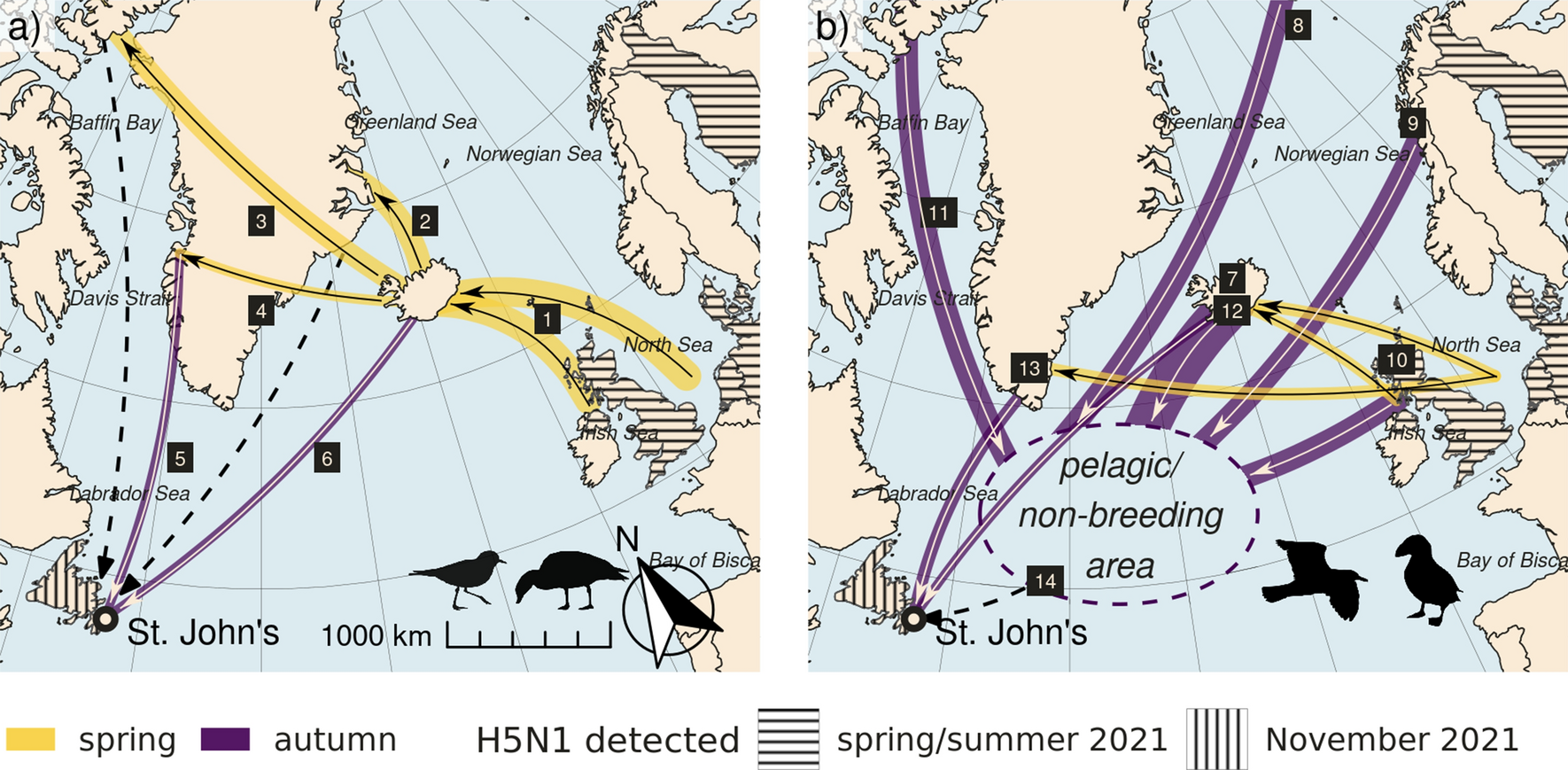

Figure 4

Maps of transatlantic migration. Putative virus transmission pathways between Europe and Newfoundland via migratory waterfowl/shorebirds (a) and pelagic seabirds (b). Many Icelandic waterfowl and shorebirds (a) winter in Northwest Europe and return to Iceland to breed in spring (1), including whooper swans, greylag geese, pink-footed geese, Eurasian wigeons, Eurasian teals, northern pintails, common ringed plovers and purple sandpipers. Some bird populations use Iceland as a stopover site, and continue to breeding grounds in East Greenland (2; barnacle geese and pink-footed geese), the East Canadian Arctic (3; light-bellied brent geese, red knots, ruddy turnstones) and West Greenland (4; greater white-fronted geese). Migratory birds from Europe share these breeding areas with species that winter in North America, including Canada geese and snow geese from East Greenland and the East Canadian Arctic (5), and some Iceland-breeding species of duck, including small numbers of Eurasian wigeons, Eurasian teals, and tufted ducks (6). Several seabird species (b), such as gulls, skuas, fulmars and auks, have large breeding ranges in the Arctic. After the breeding season many species become fully pelagic and can roam large parts of the northern Atlantic. The mid-Atlantic ridge outside Newfoundland is an important non-breeding area for seabirds, and is frequented by auks from Iceland (7), Svalbard (8) and Norway (9), including large numbers of Atlantic puffins and Brünnich guillemots, and by black-legged kittiwakes and northern fulmars originating from Iceland, Norway and the United Kingdom (7–8, 10). There these birds are joined by seabirds from Canadian and Greenlandic waters (11). Direct migratory links to Newfoundland occurs through greater and lesser-black backed gulls as well as black-headed gulls from Iceland and Greenland (12, 13), and gulls also link the pelagic and the coastal zone around Newfoundland (14). Thickness of the lines highlights the relative approximate population sizes. Dashed lines show where small numbers of individuals, or vagrants, provide a potential pathway. For more details on species and population numbers see Table 2. This figure was prepared using the software R (version 4.0.5, https://www.r-project.org/) and the following packages: -ggplot2 (version 3.3.5, https://cran.r-project.org/web/packages/ggplot2/index.html), -sf (version 1.0.5, https://cran.r-project.org/web/packages/sf/index.html).
