Figure 5 | Scientific Reports

Figure 5

From: N-oleoylethanolamide treatment of lymphoblasts deficient in Tafazzin improves cell growth and mitochondrial morphology and dynamics

Figure 5

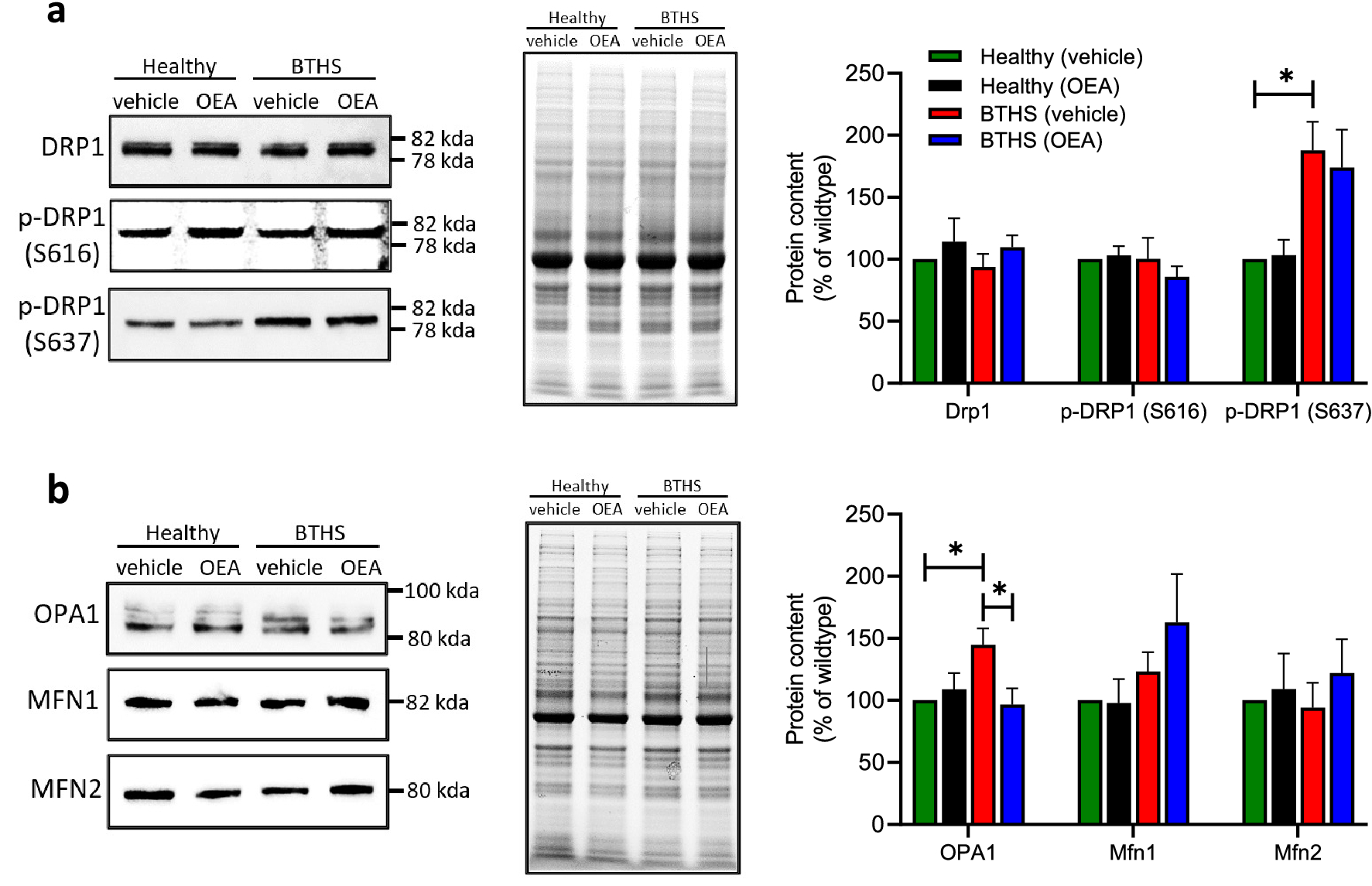

OEA treatment attenuated the elevated expression levels of OPA1 in BTHS lymphoblasts. Representative immunoblots (left panel), images of total protein loading (middle panel), and quantification (right panel) of proteins involved in mitochondrial fission (a) and fusion (b) are shown. Quantification was determined by Image Lab software (Bio-Rad Canada) and shown normalized to total protein. Uncropped images are presented in Supplementary Figs. S1–S6. Data are means ± S.E.M; n = 5. *P < 0.05.
