From: Predicting persistent central serous chorioretinopathy using multiple optical coherence tomographic images by deep learning

Figure 2

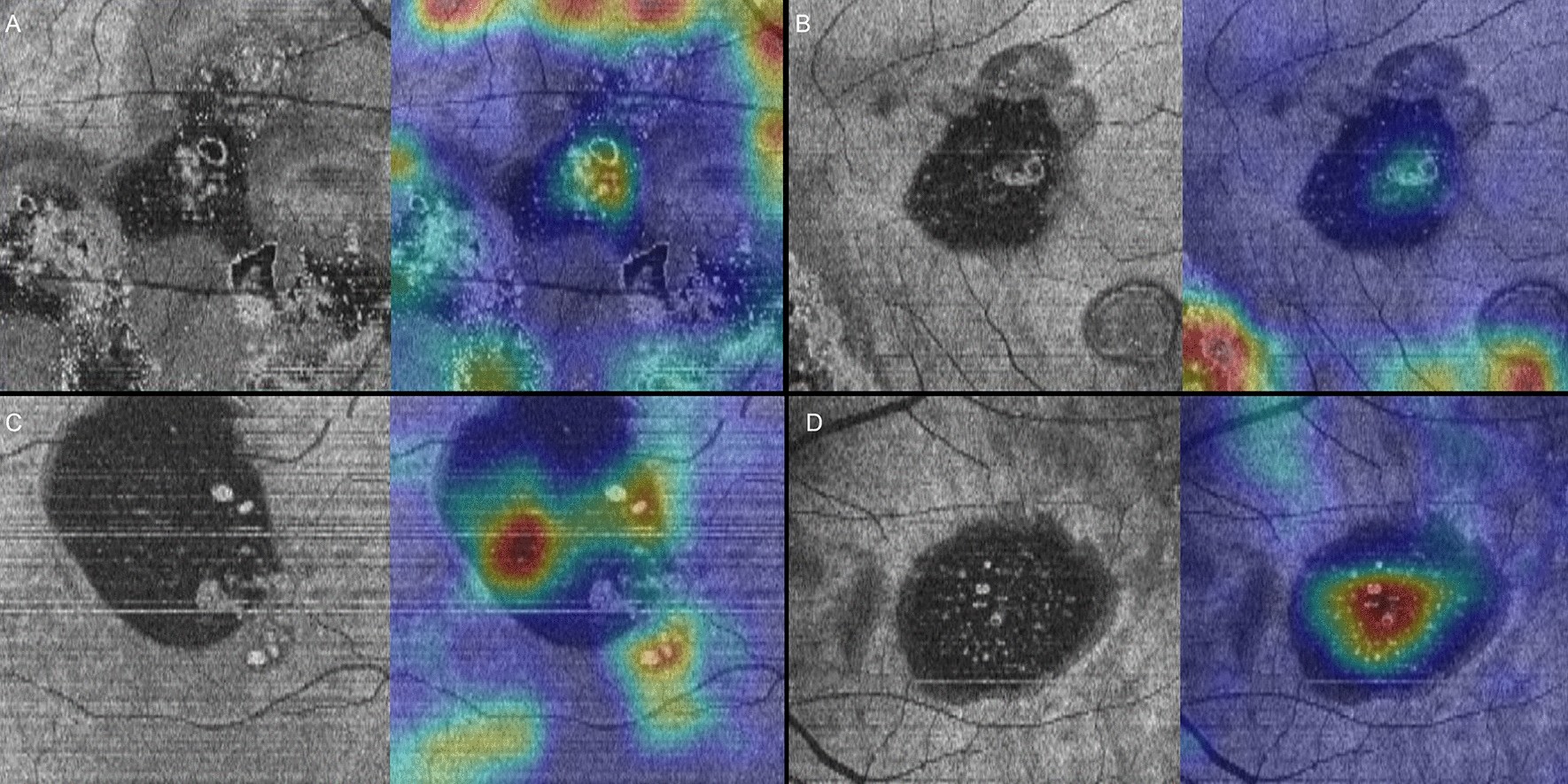

Four representative cases of persistent Grad-CAM analysis on OCT en face images of the ellipsoid zone (EZ) layer. (A–D) A heatmap overlying the OCT en face image of the EZ layer highlights areas of the neurosensory retinal detachment with or without outer retinal defects within the main lesion in all cases. Areas of the neurosensory retinal detachment with or without outer retinal defects outside the main lesion are important in Cases A and B.
