Figure 10
From: Comparison between sand and clay clogging mechanisms of pervious concrete pavement

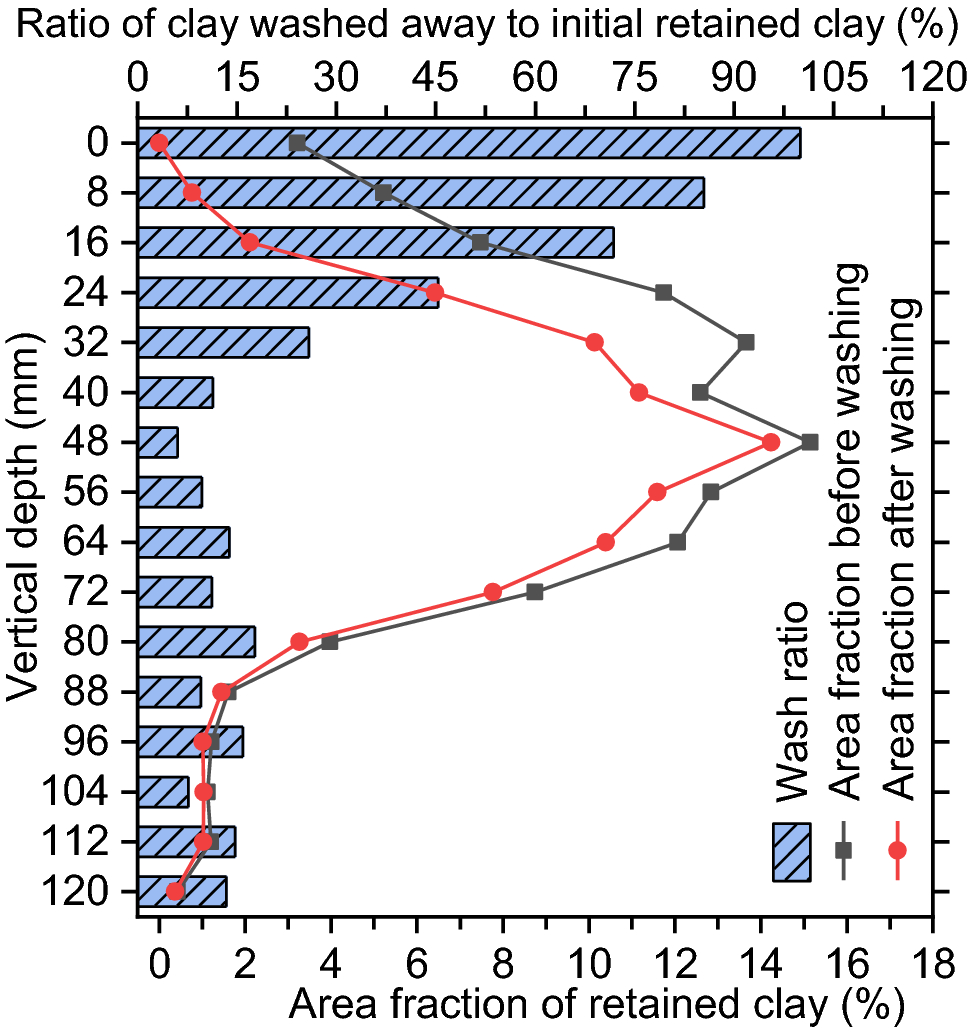

Vertical distributions for area fraction of retained clay before and after 30 washing cycles (line graph) and distribution of the wash ratio of clay (bar graph) for the dried clay-clogged sample.
