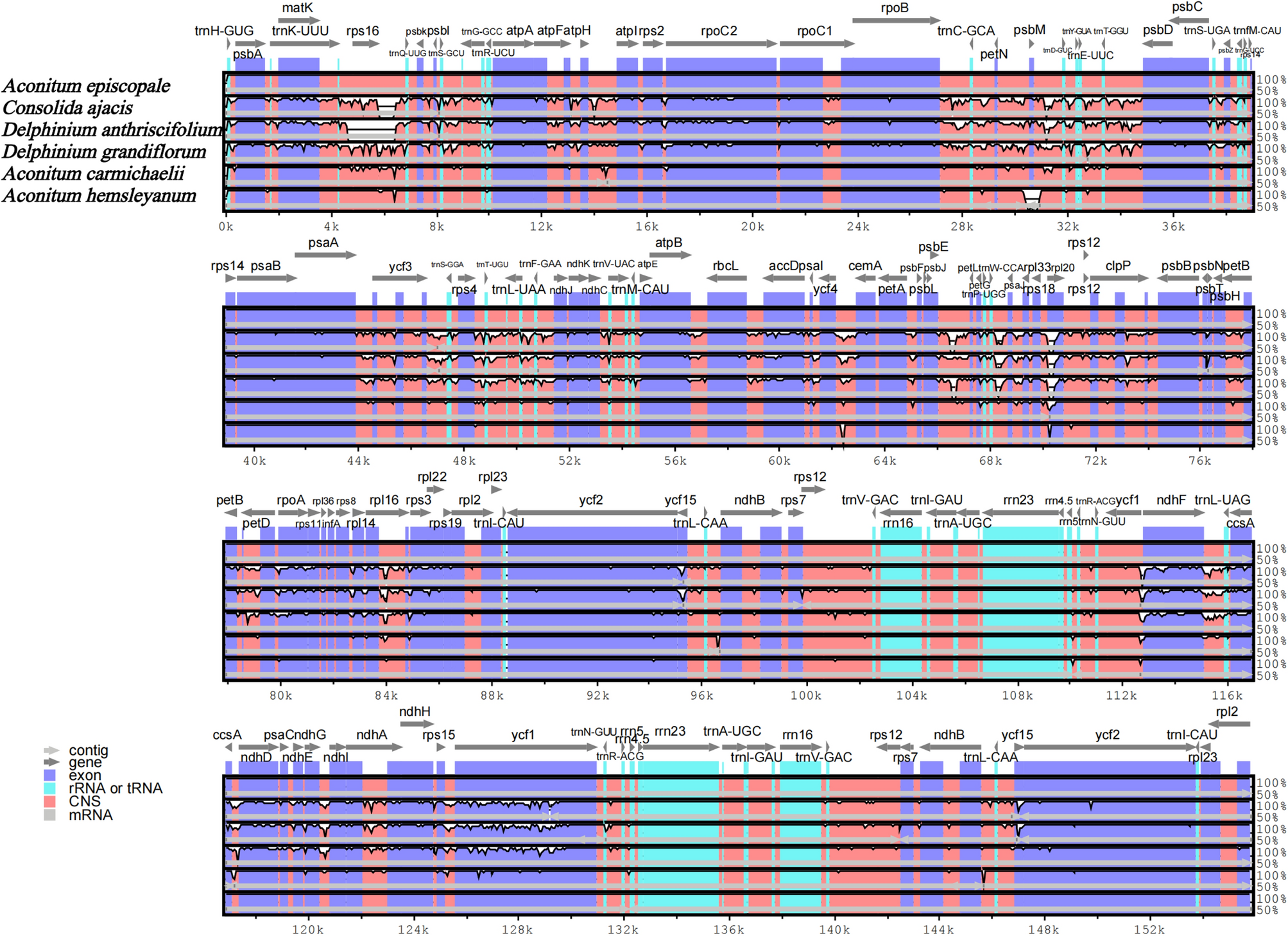

Comparison of the chloroplast genome sequences of A. episcopale, A. hemsleyanum, A. carmichaelii, C. ajacis, D. grandiflorum, and D. anthriscifolium generated with mVISTA. Grey arrows indicate the position and direction of each gene. Red and blue areas indicate the intergenic and genic regions, respectively. The vertical scale indicates the percentage of identity, ranging from 50 to 100%.
