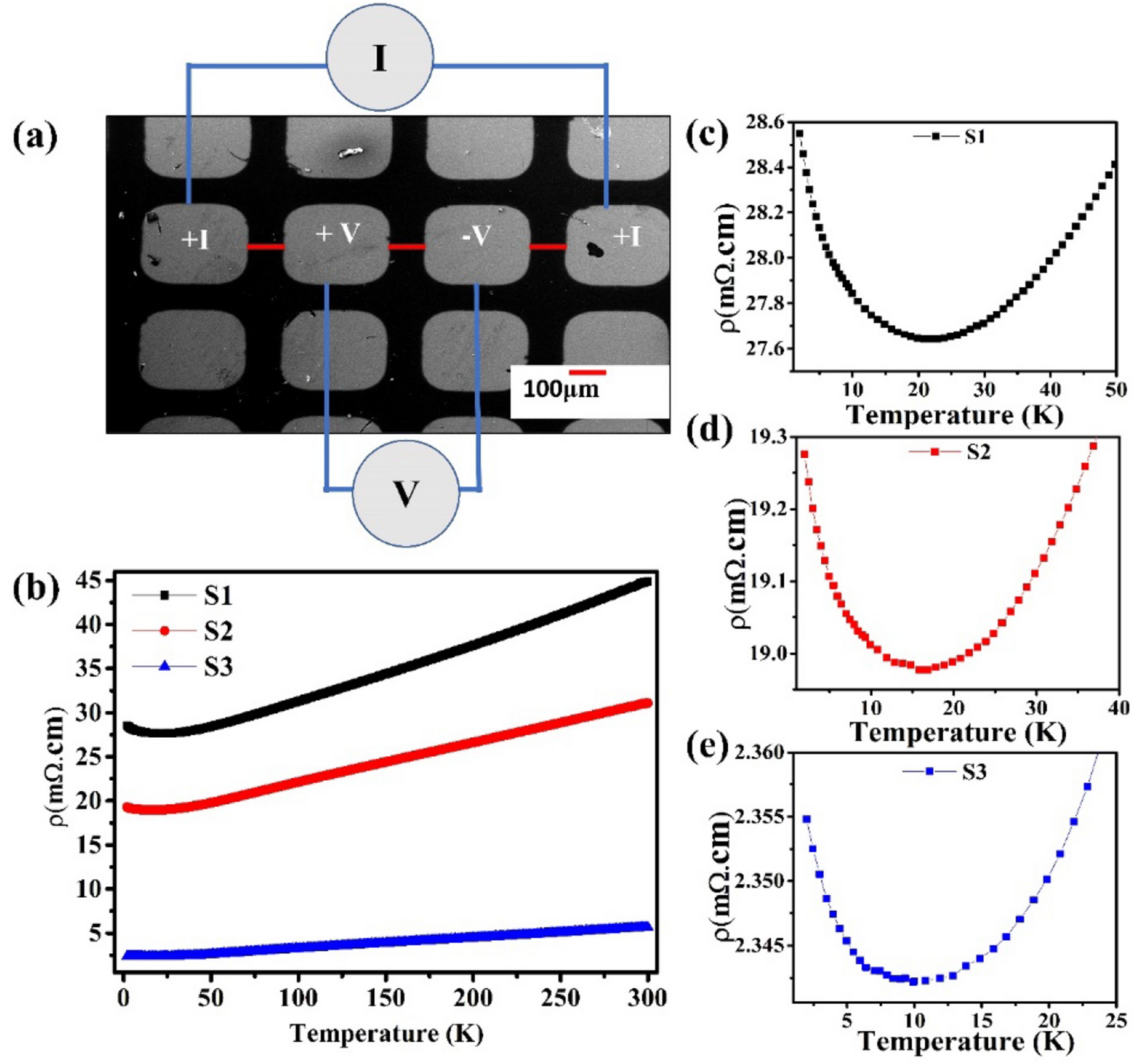

Figure 5
(a) SEM image of the fabricated device for low temperature transport measurements and (b) temperature dependent (2–300 K) resistivity curves for S1–S3 samples. (c–e) Represent the resistivity data at narrow temperature range of 2–50 K for S1, S2 and S3 samples, respectively.
