From: Production Ganoderma lucidum extract nanoparticles by expansion of supercritical fluid solution and evaluation of the antioxidant ability

Figure 2

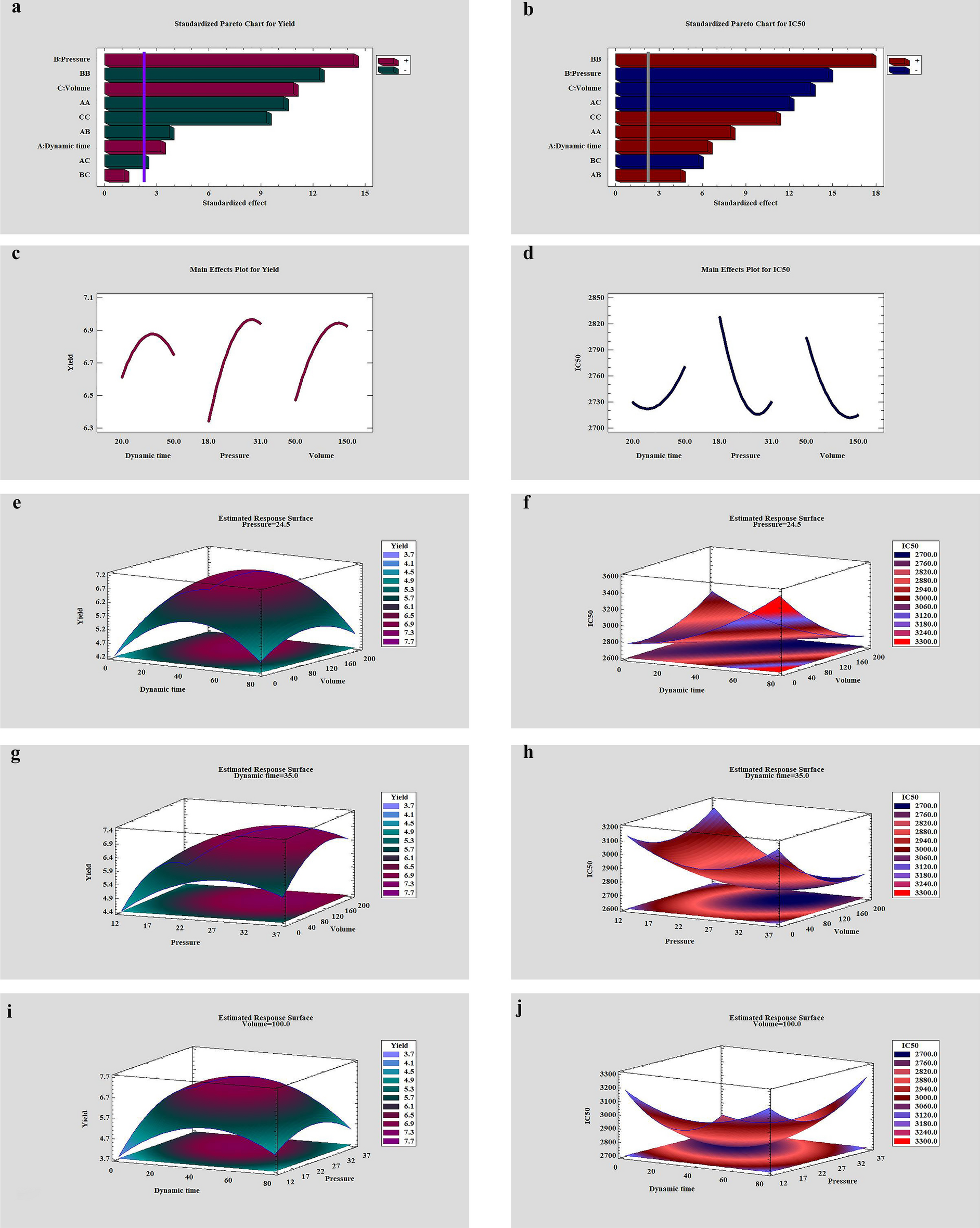

(a,b) Standardized Pareto chart for SFE yield and IC50, respectively. (c,d) Main effect for SFE yield and IC50 respectively. Estimated response surface for (e,f) temperature was fixed at 55 ˚C, pressure was fixed at 24.5 MPa., (g,h) Dynamic time was fixed at 35 min, (i,j) modifier volume was fixed at 100 µL for SFE yield and IC50 , respectively.
