Figure 2
From: Heart age estimated using explainable advanced electrocardiography

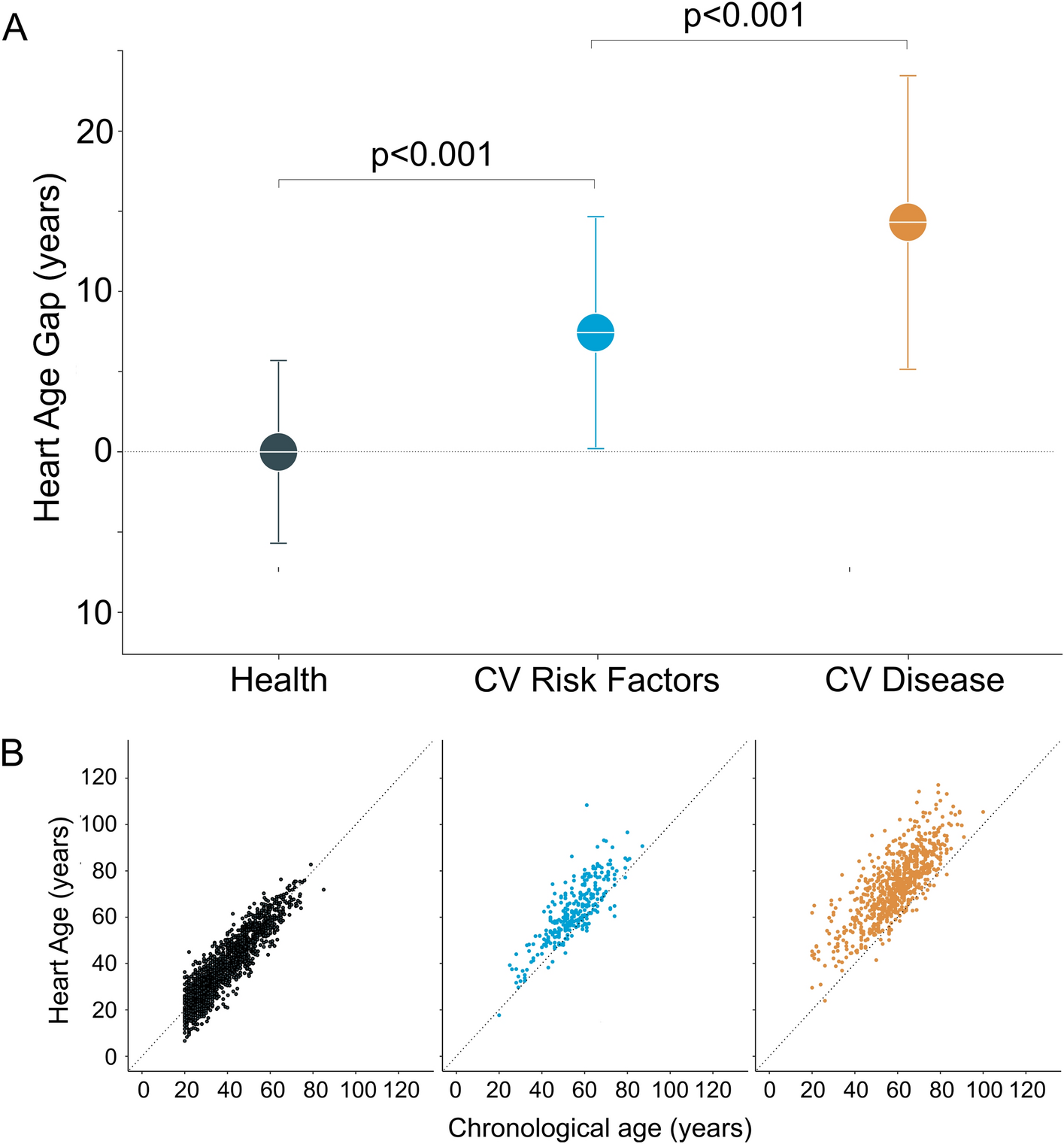

(A) The difference (the Heart Age Gap) between the 10-s ECG Heart Age and chronological age in healthy subjects (left, dark green), subjects at cardiovascular (CV) risk (middle, light blue), and patients with CV disease (right, yellow). On average, there is no difference between Heart Age and chronological age in healthy subjects. Heart Age Gap is higher in subjects at CV risk, and highest for those with overt CV disease. (B) Scatter plots showing the relationship between the 10-s ECG Heart Age and chronological age in healthy subjects (left, dark green), subjects at CV risk (middle, light blue), and patients with CV disease (right, yellow). The dashed diagonal line is the identity line, i.e. indicating no difference between Heart Age and chronological age.
