Figure 2
From: Mechanisms of membrane protein crystallization in ‘bicelles’

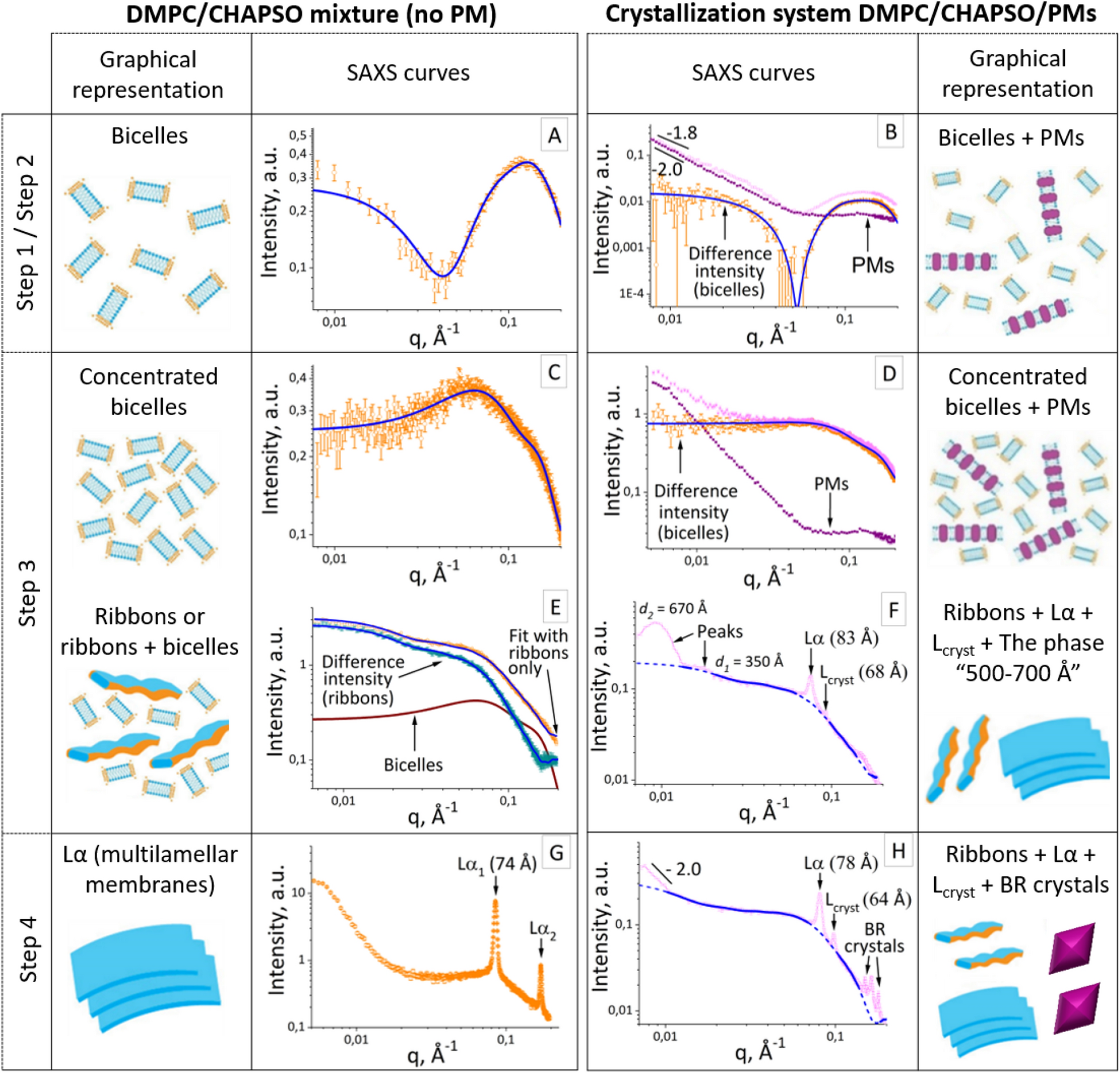

Evolution of the crystallization matrix during the crystallization process. The SAXS curves for the pure DMPC/CHAPSO mixture without PM (left) and the crystallization system DMPC/CHAPSO/PM (right). Experimental data for crystallization system with and without PM are shown as light purple and orange hollow circles, correspondingly. SAXS curves for PM are shown as dark purple squares. The approximations by form-factors of the bicelles and the ribbons are shown as blue lines. The graphical representations of the structural organizations of the crystallization matrix are shown adjacent to the corresponding SAXS curves.
