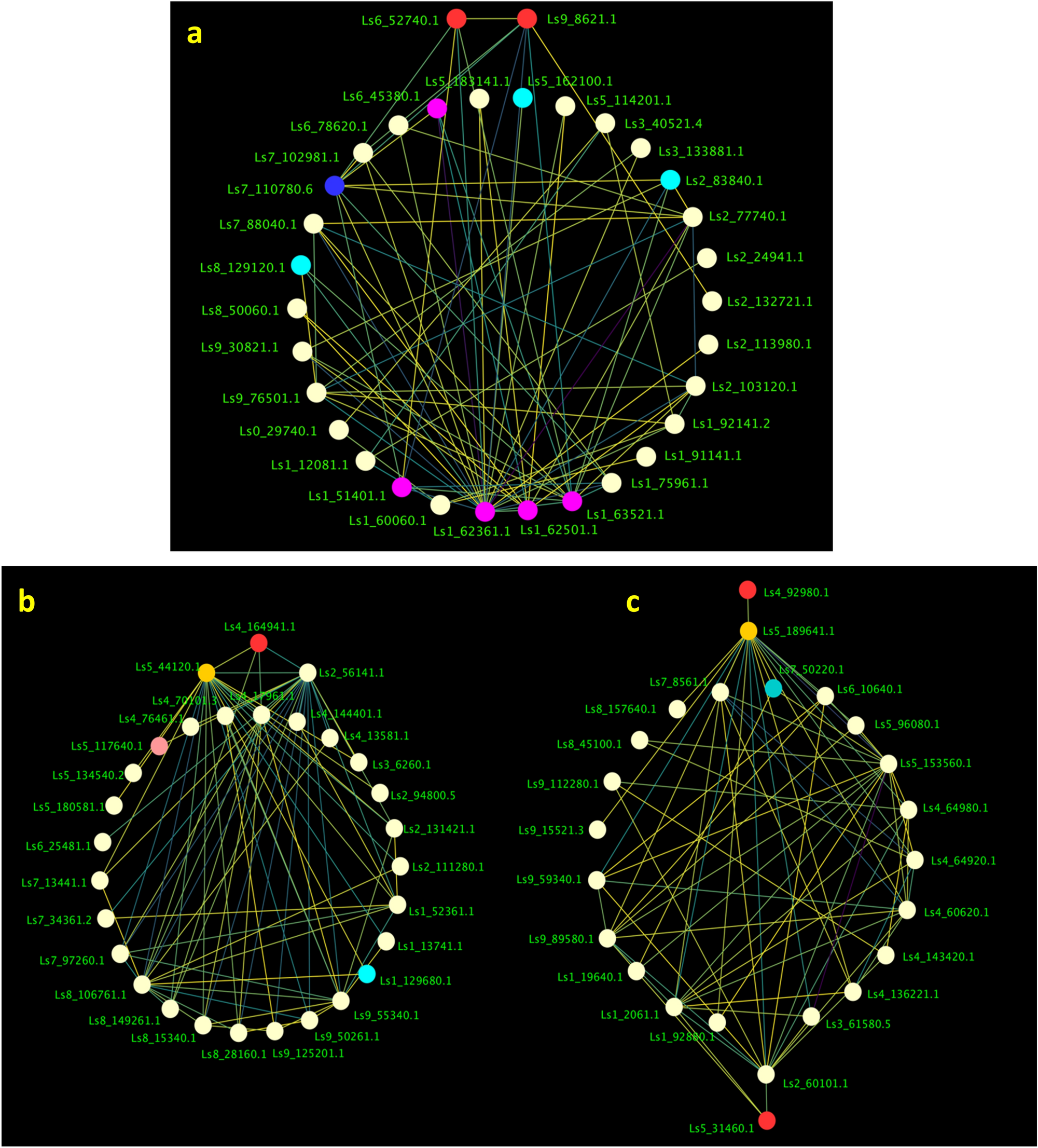

The co-expression network of highly correlated (r2 > .90) hub genes and associated TFs identified by applying the Molecular Complex Detection (MCODE) to the networks. (a) The co-expression network of the significant genes in the lightgreen module. (b, c). Two co-expression clusters of the significant genes in the blue module. The TFs in each cluster are red colored.
