Figure 2 | Scientific Reports

Figure 2

From: Proteomic analysis of adipose tissue revealing differentially abundant proteins in highly efficient mid-lactating dairy cows

Figure 2

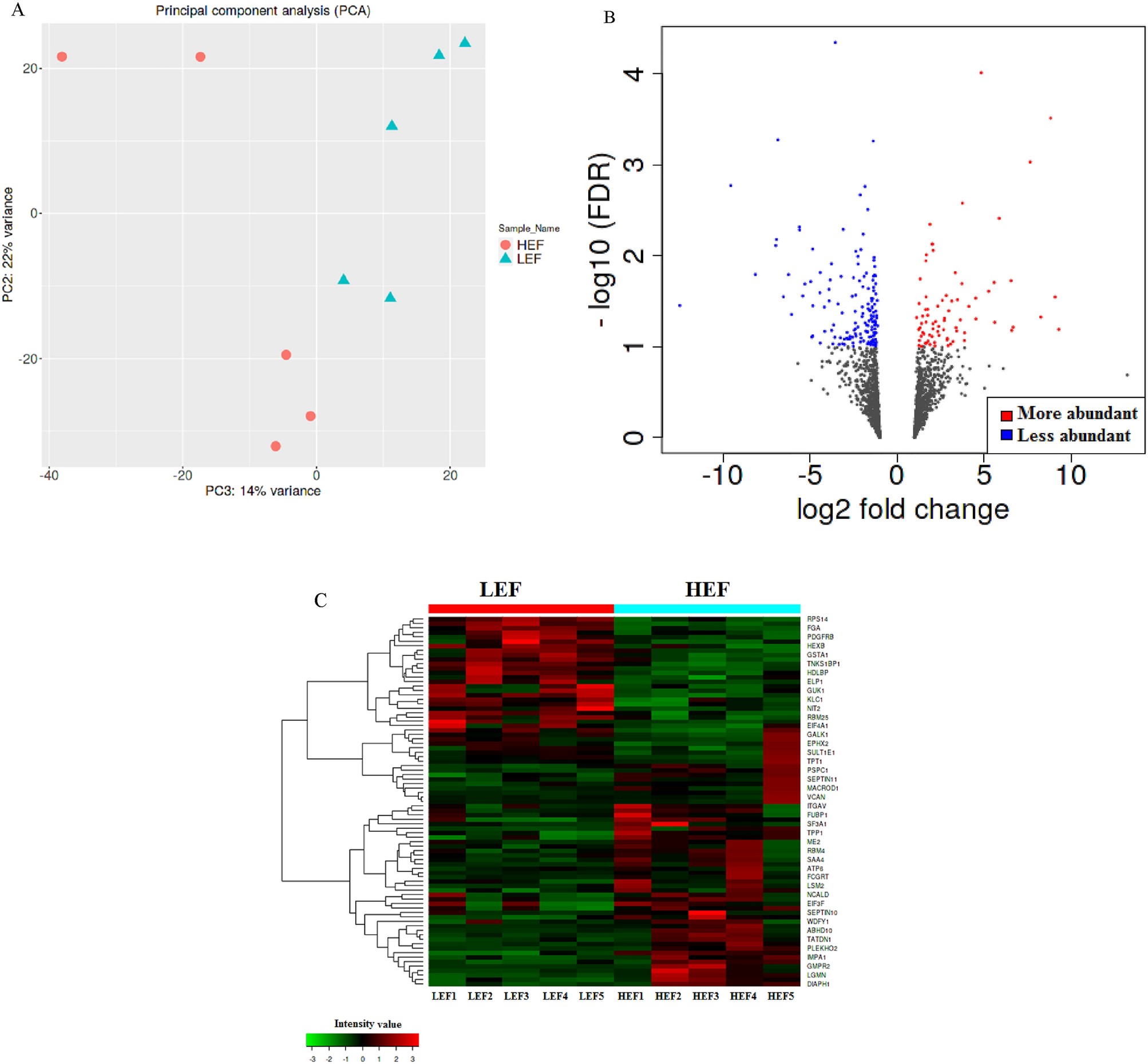

(A) Principle component analysis of HEF versus LEF dairy cows measured by IDEP9.1 server showing 14% variance. LEF samples represented in red circles whereas HEF samples represented in green triangles. (B) Volcano plot analysis of HEF versus LEF dairy cows generated by IDEP9.1 server with P value (< 0.05) on Y-axis and FDR (± 1.5) on X-axis. Each dot represents one protein and red color indicates more whereas blue color indicates less abundant proteins in AT. (C) Heatmap of AT analyzed by IDEP9.1 server where low peptide intensity represented by green color whereas high peptide intensity was measured in red color. Each cow in the study is numbered and represented in columns.
