From: COVID-19 due to the B.1.617.2 (Delta) variant compared to B.1.1.7 (Alpha) variant of SARS-CoV-2: a prospective observational cohort study

Figure 4

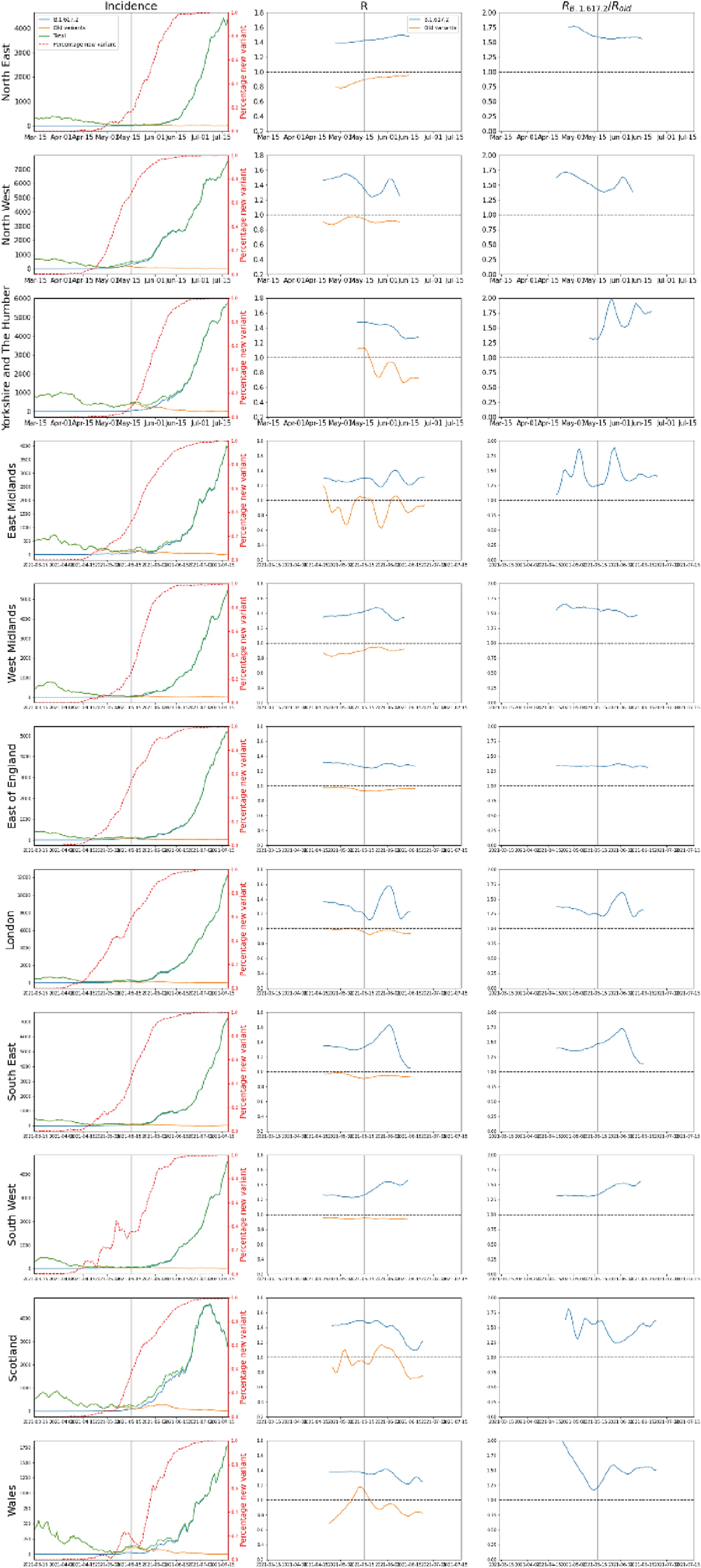

Incidence and R(t) for Delta and non-Delta variants. Left column shows total incidence, and incidence for each variant. Middle column shows R(t) for each variant. Rightmost column shows the ratio R_Delta/R_non-Delta, noting that in the timeframe considered non-Delta was predominantly Alpha. Vertical line indicates lifting of some lockdown restrictions on May 17, 2021.
