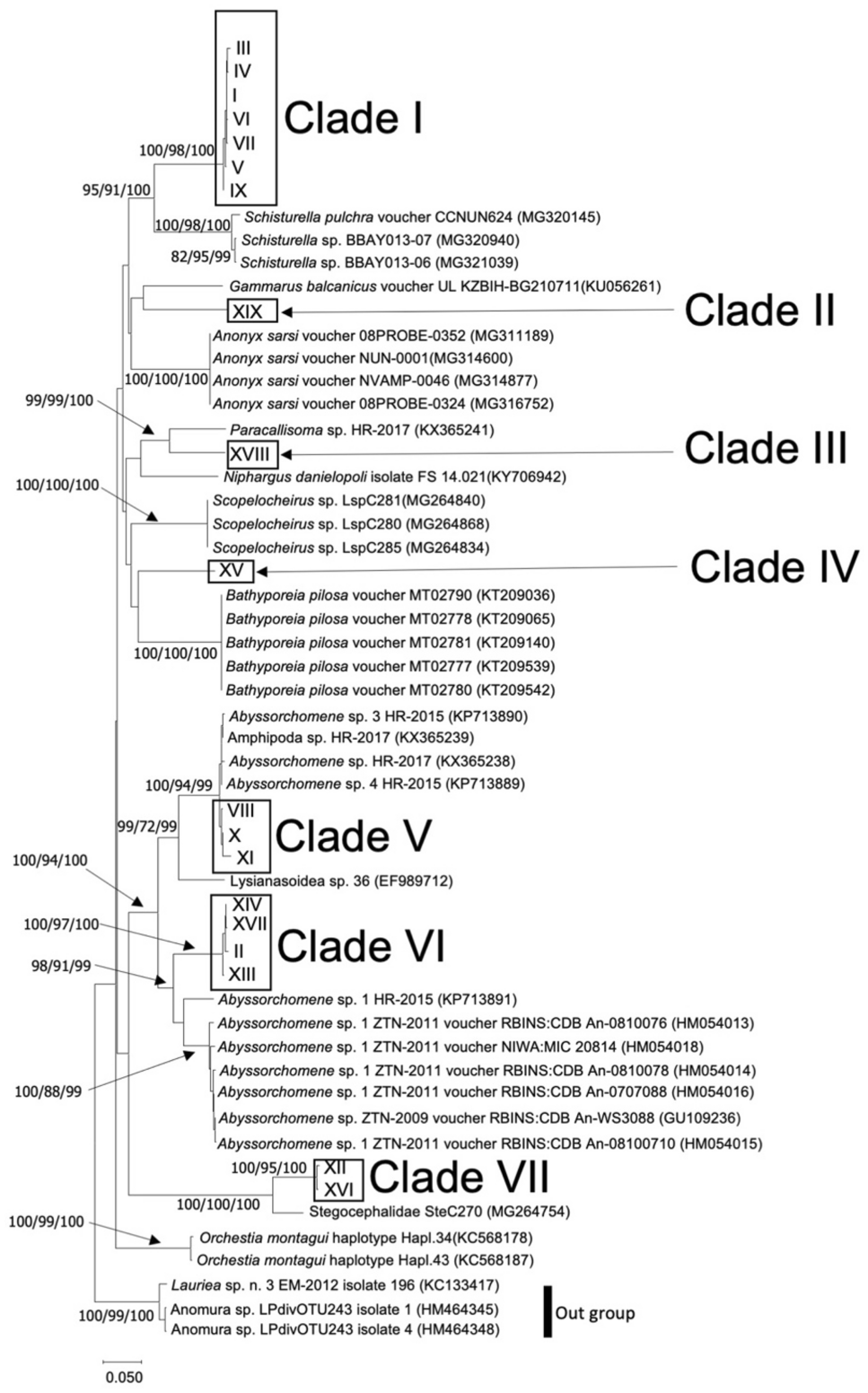

Figure 5

Molecular phylogenetic tree of amphipod species. Numbers indicate bootstrap values of neighbor-joining and maximum likelihood methods (only those > 70% are shown) and Bayesian posterior probabilities (shown as NJ/ML/BI). Boxes show clades containing the haplotypes we obtained. Scale indicates 0.05 substitutions per site.
