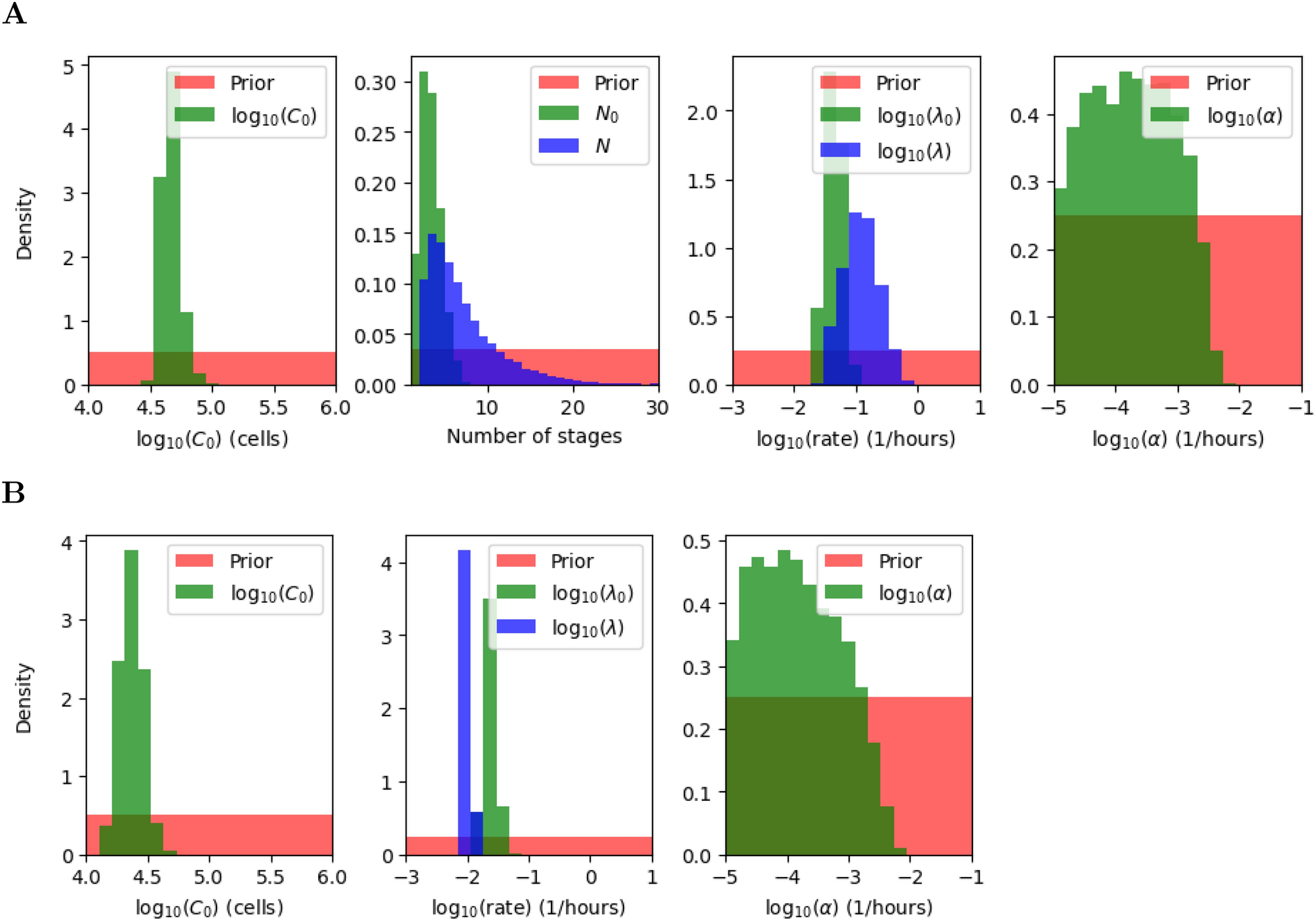

Figure 8

Posterior distributions (green and blue) for the parameters in the multi-stage (A) and exponential (B) model for OT-I T cells. In the exponential model, the number of stages for all generations is equal to 1, i.e., \(N_0 = N = 1\). Prior distributions are shown in red.
