From: RETRACTED ARTICLE: Strontium doped bioglass incorporated hydrogel-based scaffold for amplified bone tissue regeneration

Figure 2

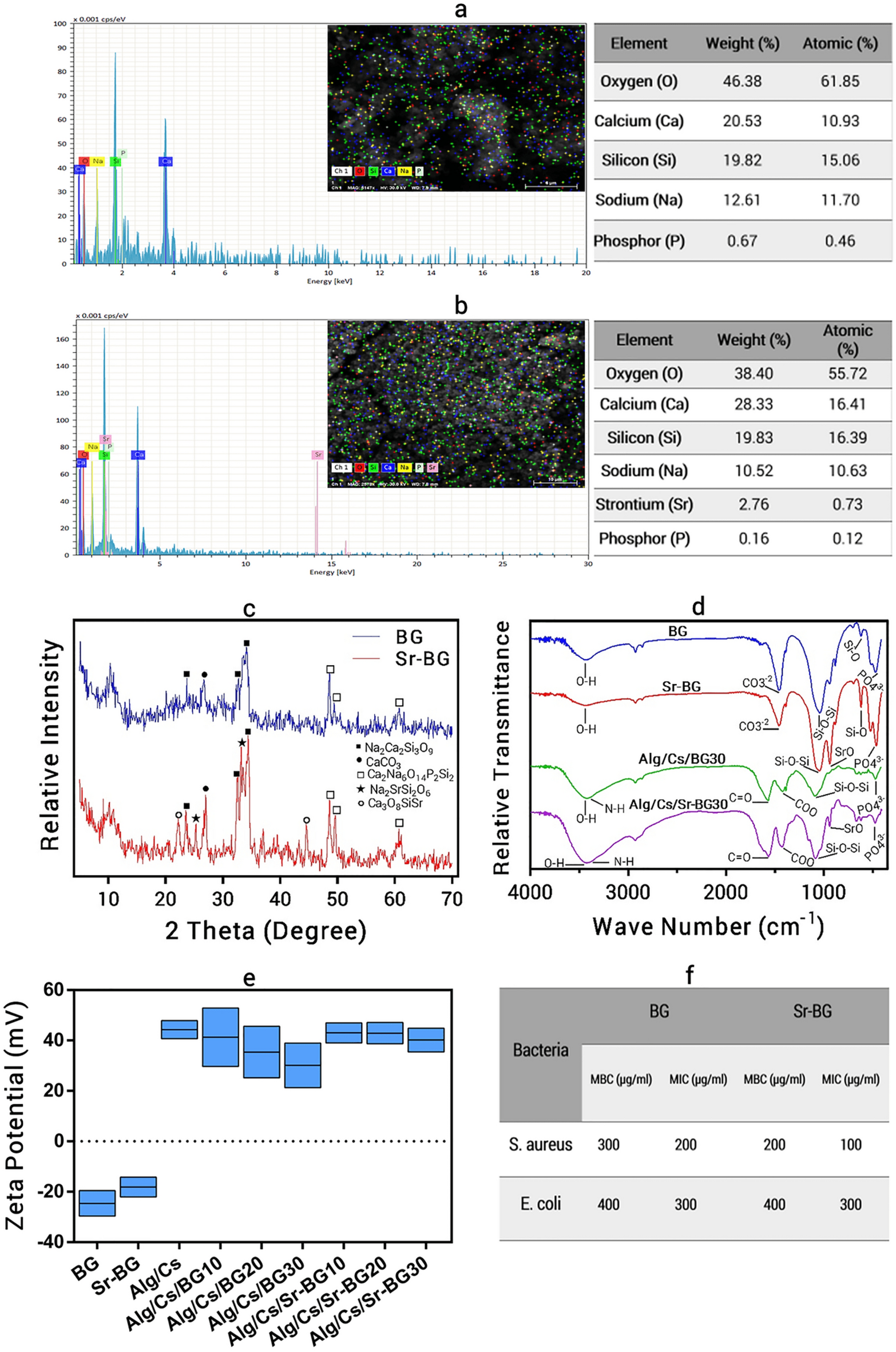

EDS profile and XRD pattern of bopglasses, FTIR spectra and zeta potential of bioglasses/scaffolds and antimicrobial activity of bioglasses. (a) BG EDS profile, (b) Sr-BG EDS profile, (c) XRD pattern of BG and Sr-BG, (d) FTIR spectra of BG, Sr-BG, Alg/Cs/BG30 and Alg/Cs/Sr-BG30, (e) Zeta potential of bioglasses/scaffolds, (f) Antimicrobial activity of bioglasses.
