From: Genome-wide analysis of the C2H2 zinc finger protein gene family and its response to salt stress in ginseng, Panax ginseng Meyer

Figure 1

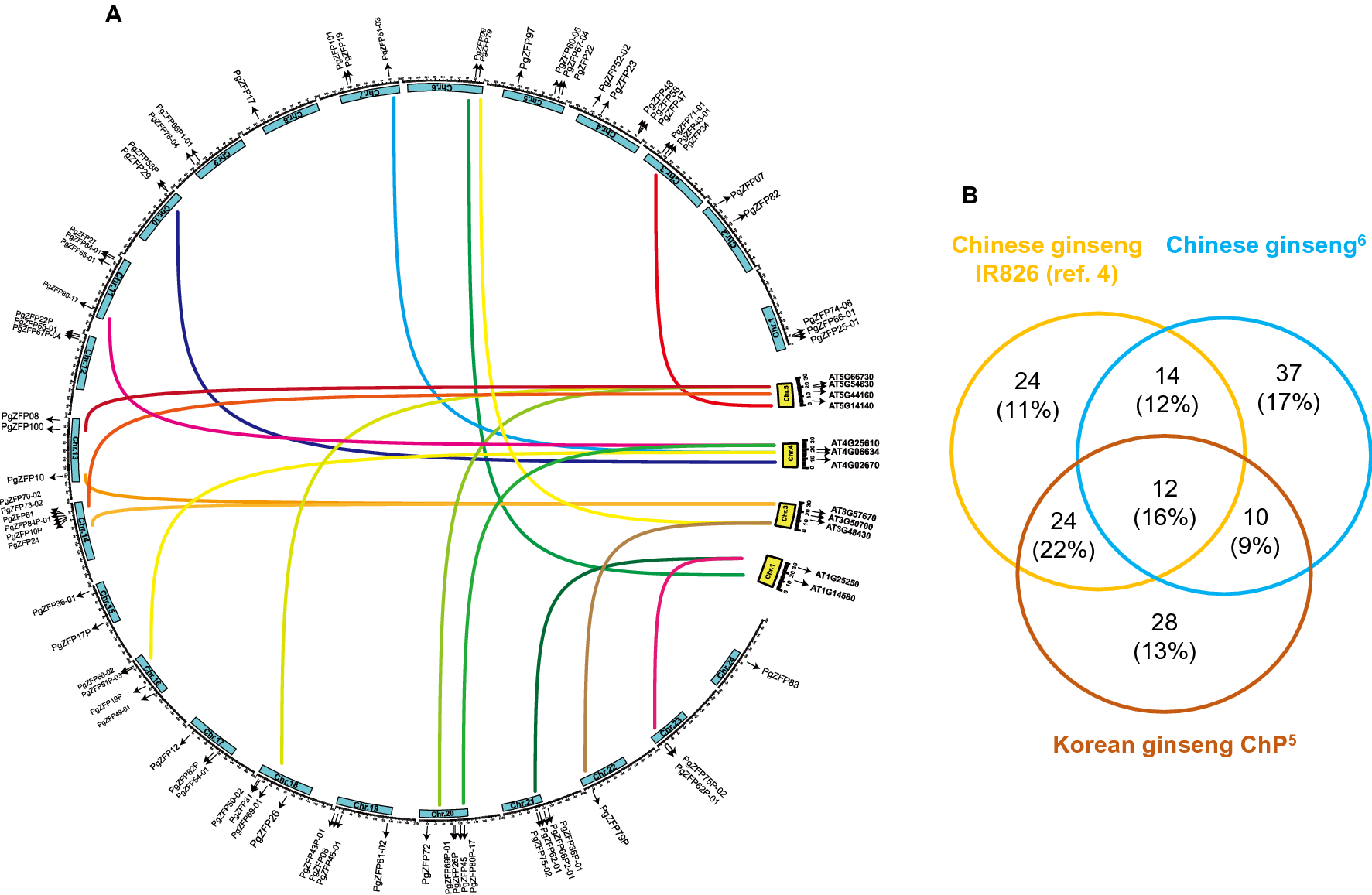

The distribution of the PgZFP gene family in the ginseng genome and its family size variation among ginseng genotypes. (A) The positions of the PgZFP gene family in the Chinese ginseng genome6 and its synteny with the Arabidopsis genome. The PgZFP genes were mapped to all 24 ginseng chromosomes indicated by light blue bars and their Arabidopsis orthologues were mapped to four of the five Arabidopsis chromosomes indicated by yellow bars. (B) Venn diagram showing the pan- and core-transcriptomes of the PgZFP gene family. The numbers in the Venn diagram indicate the numbers of the PgZFP genes in the family that are genotype-specific, shared between the genotypes, and common among all three genotypes. The percentage of the genes was calculated by the numbers of genes divided by the total number of the PgZFP genes (221) aligned to the genome of each genotype times 100.
