Figure 7
From: Graphite-oxide hybrid multi-degree of freedom resonator metamaterial for broadband sound absorption

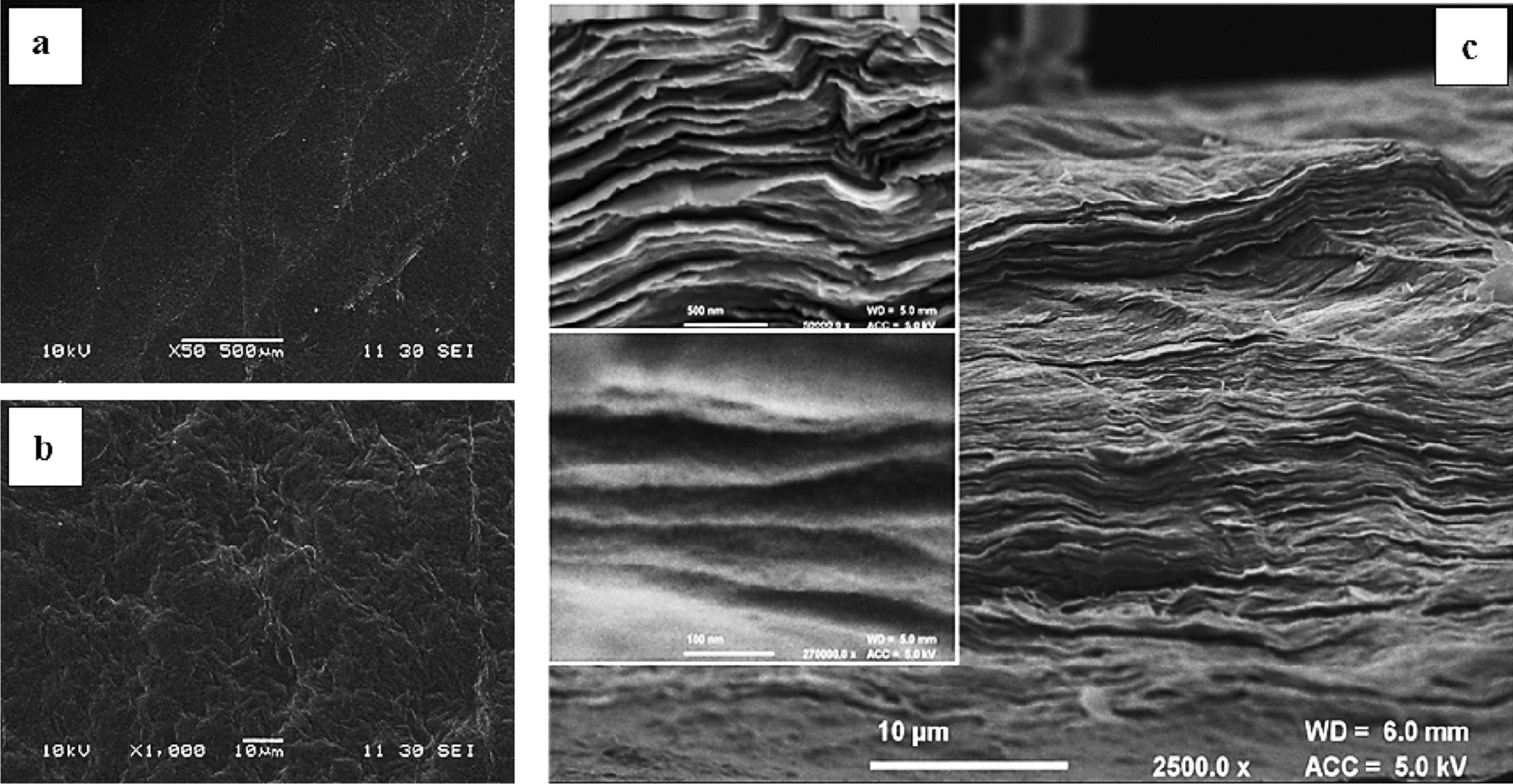

(a) Low-magnification SEM image of GO foil. (b) High magnification (×10,000) SEM image of GO foil. (c) Cross section SEM image of GO foil with onset at higher magnification (top100k, bottom 270 k).
