From: Secretion of the siderophore rhizoferrin is regulated by the cAMP-PKA pathway and is involved in the virulence of Mucor lusitanicus

Figure 7

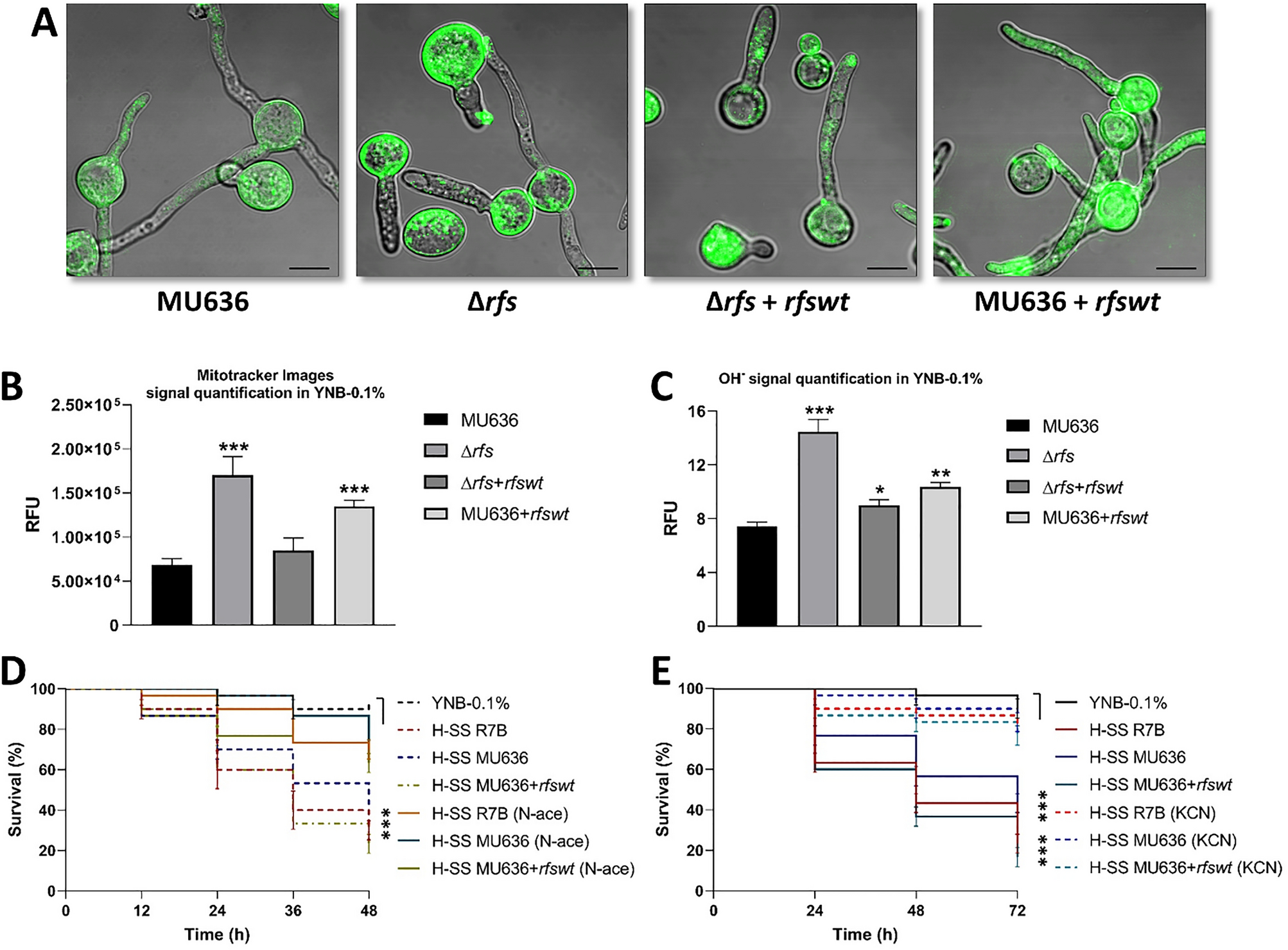

Role of Rfs in the mitochondrial membrane potential, reactive oxygen species generation, and M. lusitanicus virulence. Germinules formed at 3 h of growth in YNB with 0.1% glucose (YNB-0.1%) were visualized (A) in the presence of MitoTracker Green FM, following which the cells were visualized by confocal microscopy (120 ×), bars = 20 mm. The fluorescence signal was quantified using the (B) Mitotracker signal and (C) hydroxyl radical (OH) concentration. The results presented are the average of values obtained from four independent experiments. Significance testing was performed using ANOVA with Fisher's exact test, *P < 0.05; **P < 0.01; ***P < 0.001. (D) Effect of 10 mM N- acetylcysteine (N-ace) or (E) 0.5 mM potassium cyanide (KCN) on the virulence of cell-free supernatants of the culture (SS) from MU636-, R7B-, and rfs-overexpression (MU636 + rfswt) strains aerobically grown (H-SS) in YNB-0.1%. The SSs were used to treat Caenorhabditis elegans. A total of 15–20 nematodes were used per experiment and incubated at 18 °C for 72 h. The results presented are the average of values obtained from four independent experiments. Data were statistically analyzed using the Mantel-Cox test. ***P < 0.01. When results were not considered significant, we did not provide an additional indication (P > 0.05).
