Figure 5
From: Potential generation of nano-sized mist by passing a solution through dielectric barrier discharge

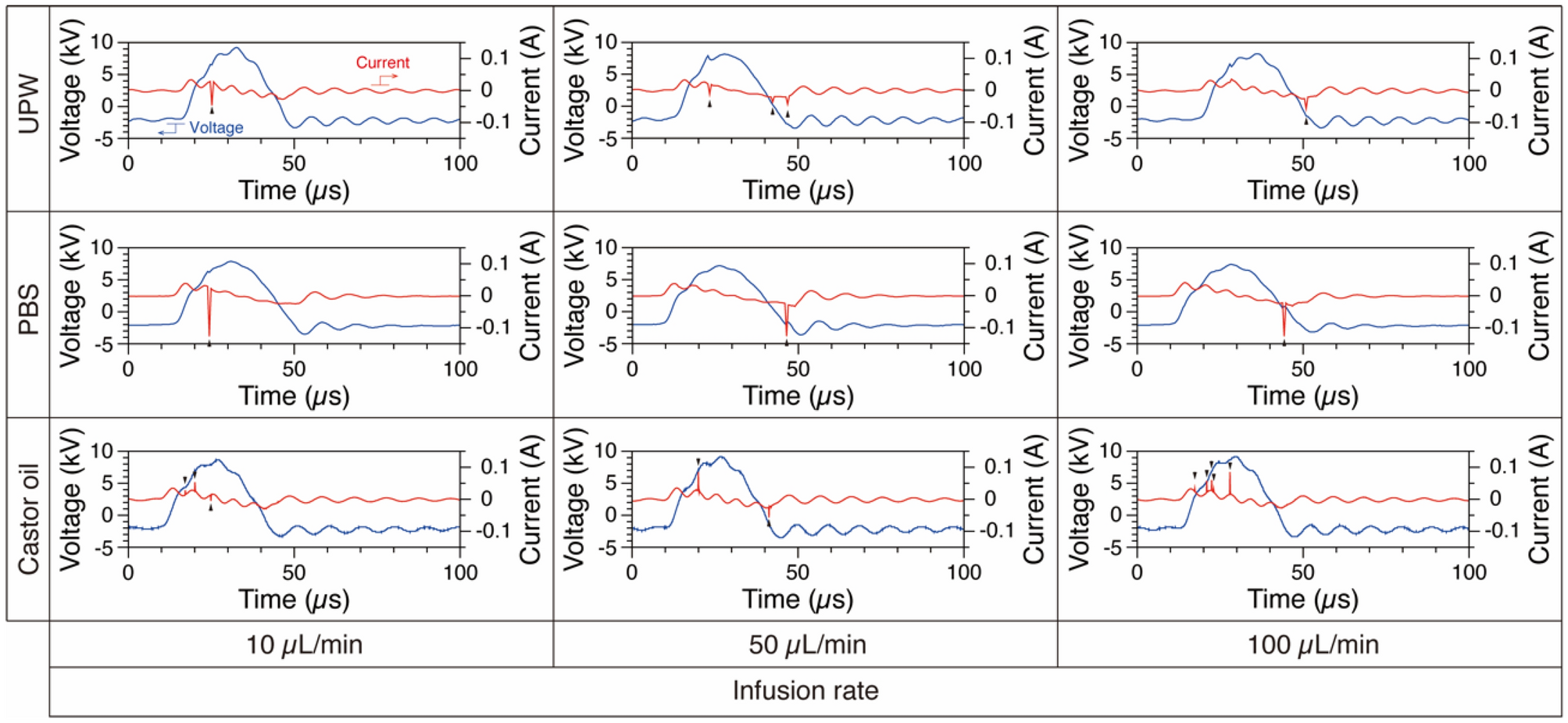

Comparison of waveforms of the applied voltage (blue) and discharge current (red) when each solution is infused at a flow rate capable of generating nano-sized mist. Black arrows indicate discharge current pulses. UPW, ultrapure water; PBS, phosphate buffered saline.
