Figure 6
From: Potential generation of nano-sized mist by passing a solution through dielectric barrier discharge

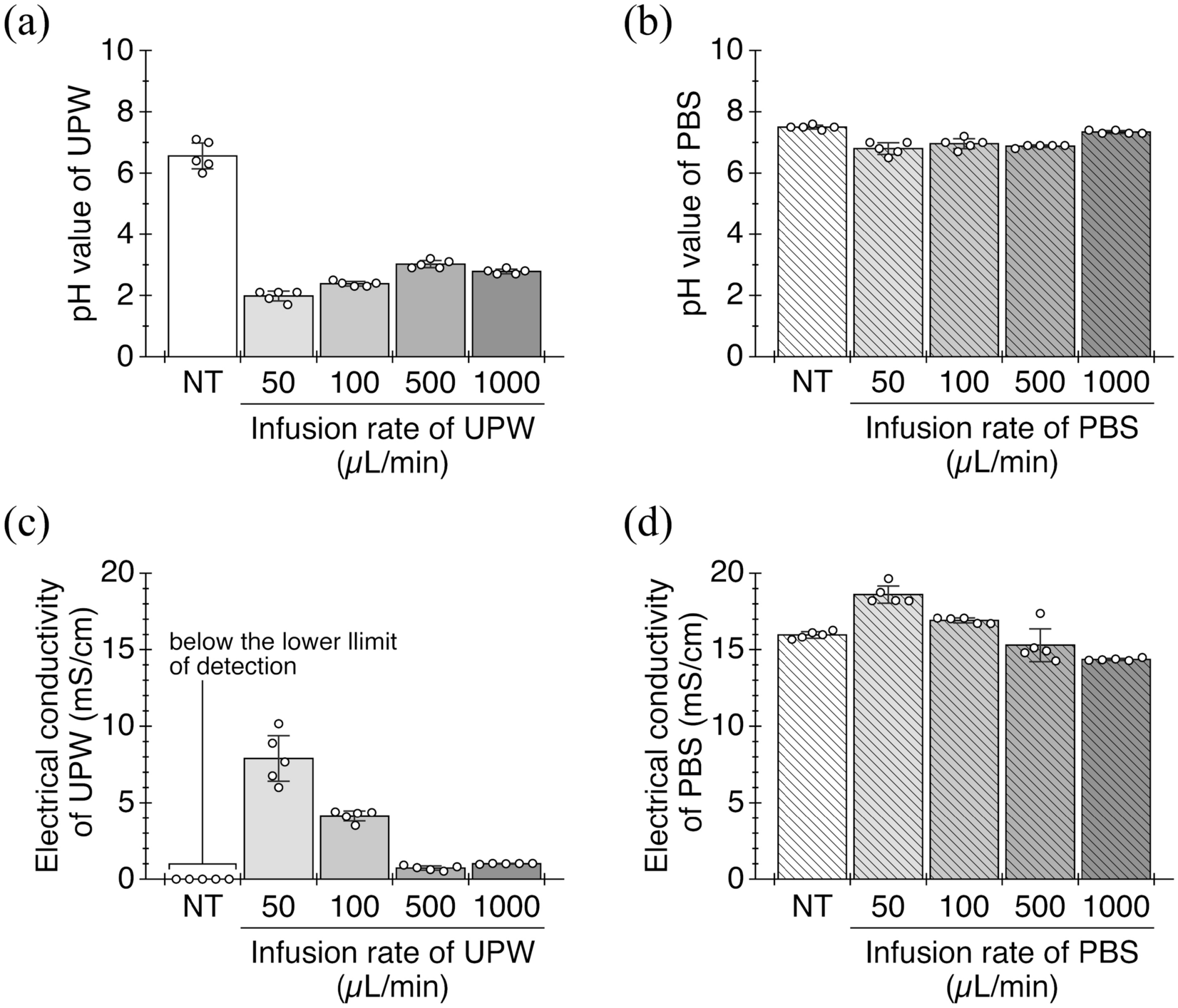

Physical characteristics of the nano-sized mist generated by the DBD. (a, b) The pH values of UPW and PBS before and after passing through the plasma discharge at each infusion rate (mean ± SD, n = 5). (c, d) Electrical conductivity of UPW and PBS before and after passing through the plasma discharge at each infusion rate (mean ± SD, n = 5). UPW, ultrapure water; PBS, phosphate buffered saline. NT, samples without plasma treatment (no treatment).
