From: Prediction of grain structure after thermomechanical processing of U-10Mo alloy using sensitivity analysis and machine learning surrogate model

Figure 2

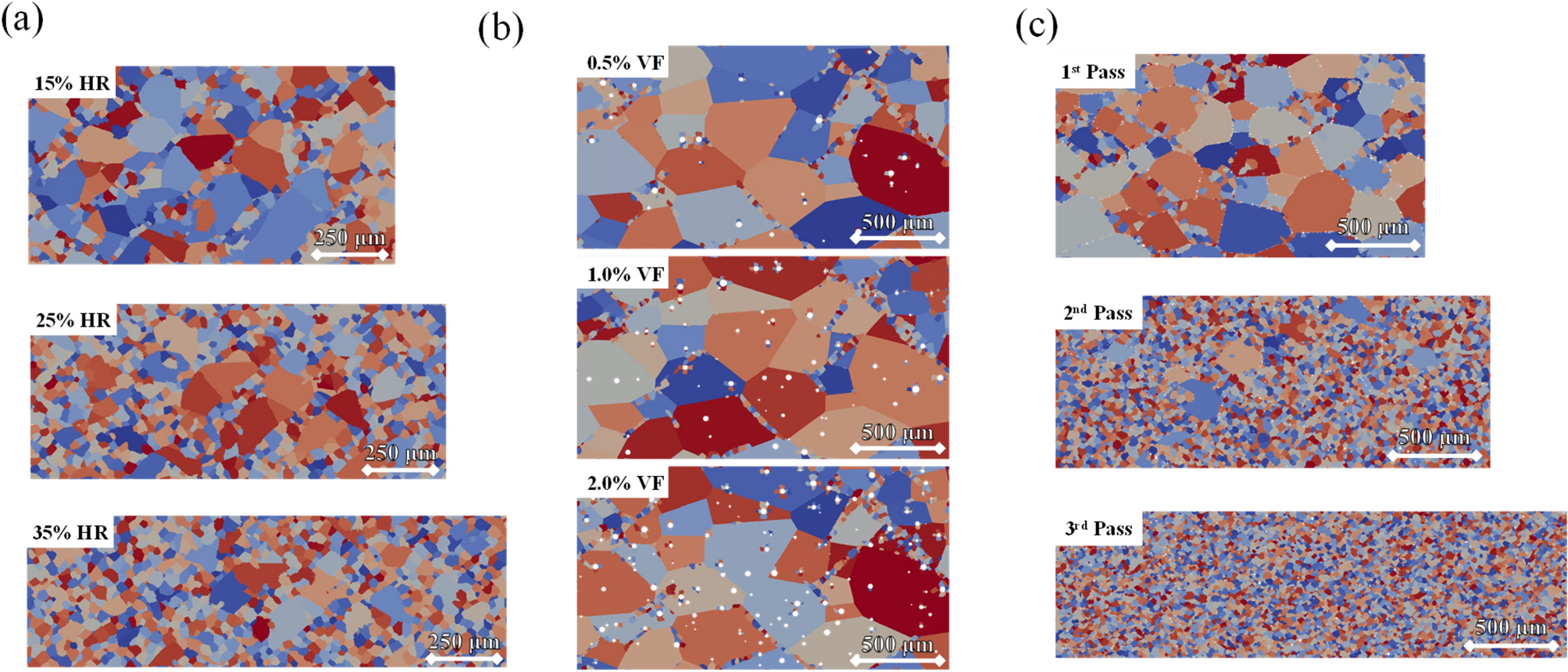

Visualization of FEM-Potts model simulated final microstructures. (a) One-pass hot rolling with reduction percentages of 15%, 25%, and 35%. (b) One-pass hot rolling with UC particle volume fractions at 0.5%, 1.0%, and 2.0% and a fixed reduction percentage of 15%. (c) Multi-pass hot rolling and annealing. The reduction percentage was 15% for each pass, with a 39% reduction after three passes. In these images, white regions represent UC particles. HR is hot rolling; VF is volume fraction. The color is assigned randomly to differentiate the grains.
