Figure 4
From: Sp1 induced gene TIMP1 is related to immune cell infiltration in glioblastoma

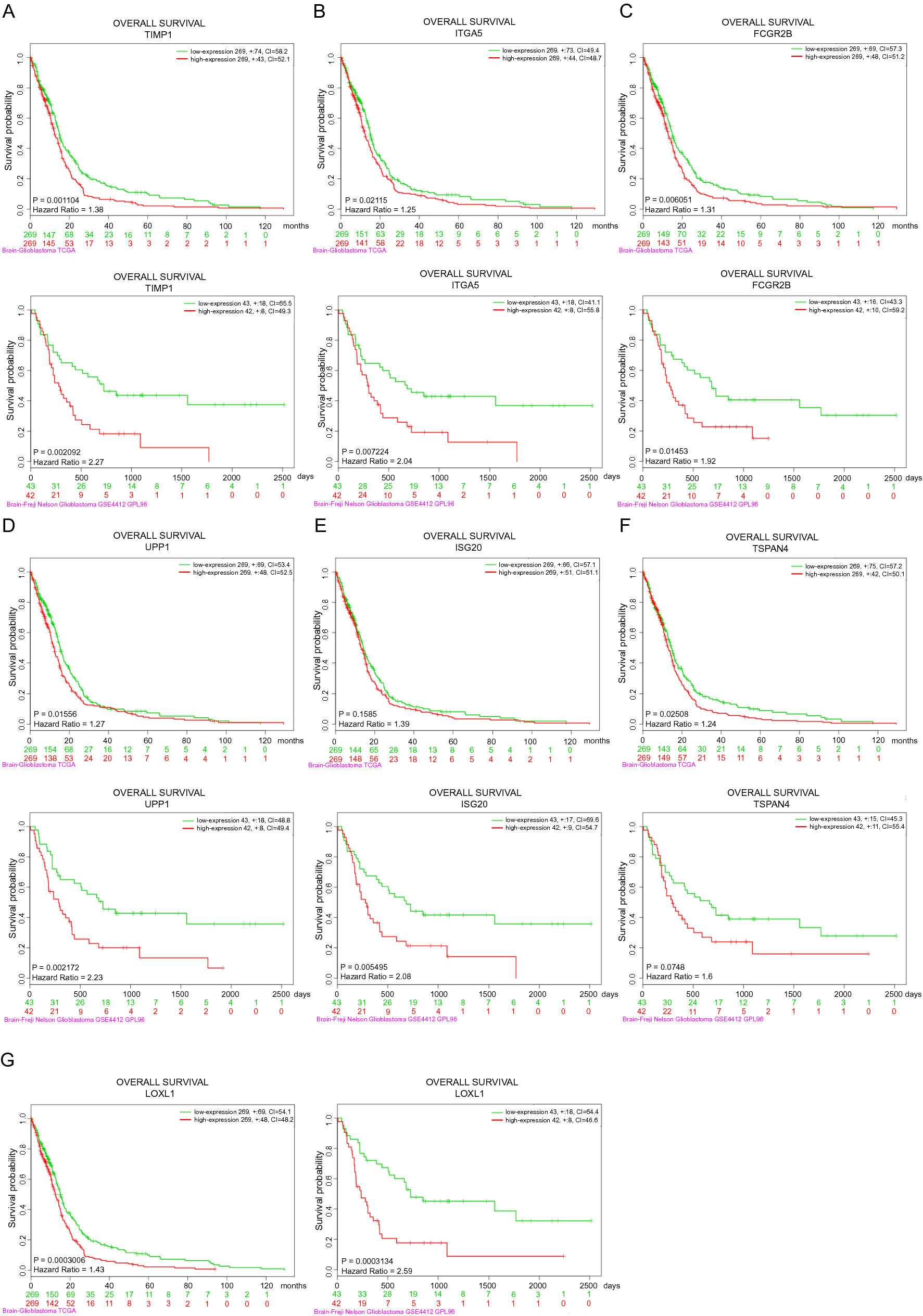

The correlations between the expression of the 7 genes and survival analysis of GBM in different datasets. Correlations between (A) TIMP1, (B) ITGA5, (C) FCGR2B, (D) UPP1, (E) ISG20, (F) TSPAN4, and (G) LOXL1 and the overall survival rates of GBM patients in Glioblastoma Multiforme TCGA and GSE4412. The X-axis indicates the time in months or days. Green lines indicate low expression of genes and red lines indicate high expression of genes. The groups between low and high expression of genes were stratified according to the median expression level of these genes. Data were analyzed by log-rank test.
