Figure 13

From: RETRACTED ARTICLE: Anti-proliferative and immunomodulatory potencies of cinnamon oil on Ehrlich ascites carcinoma bearing mice

Figure 13

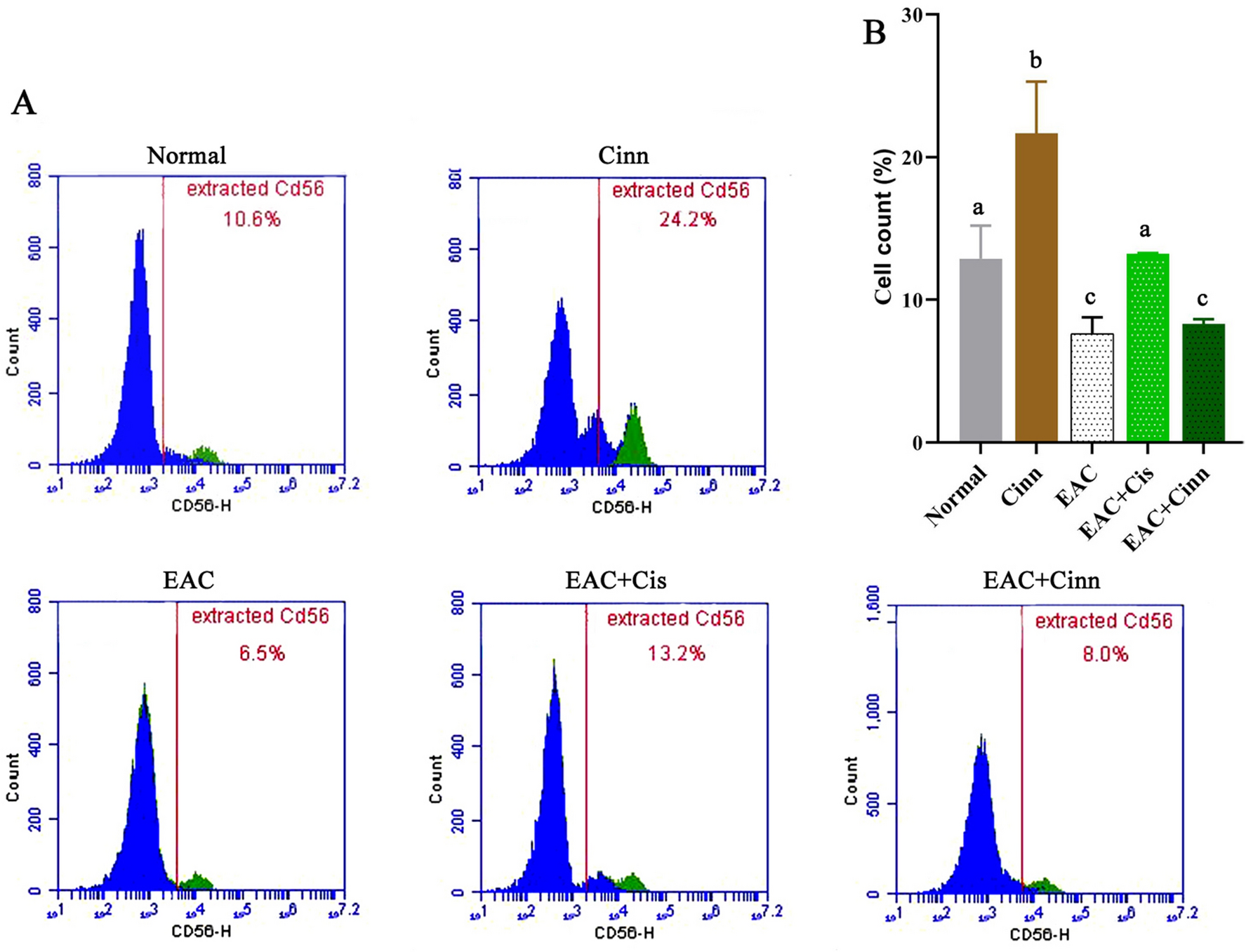

The effect of cinnamon essential oil (Cinn, 50 mg/kg b.wt/day, orally) on the percentage of splenic CD3-CD8+CD56+ cells after 12 days of treatments. (A) Representative flow cytometric dot plot analysis (BD Accuri C6 software, version 1.0.23.1, San Jose, CA, USA, www.AccuriCytometers.com). (B) Statistical data were represented as (Mean ± SD), n = 3. Significant differences (P < 0.05) between groups were shown by different letters. EAC, Ehrlich ascites carcinoma; Cis, Cisplatin (2 mg/kg b.wt, i.p).
