Figure 6

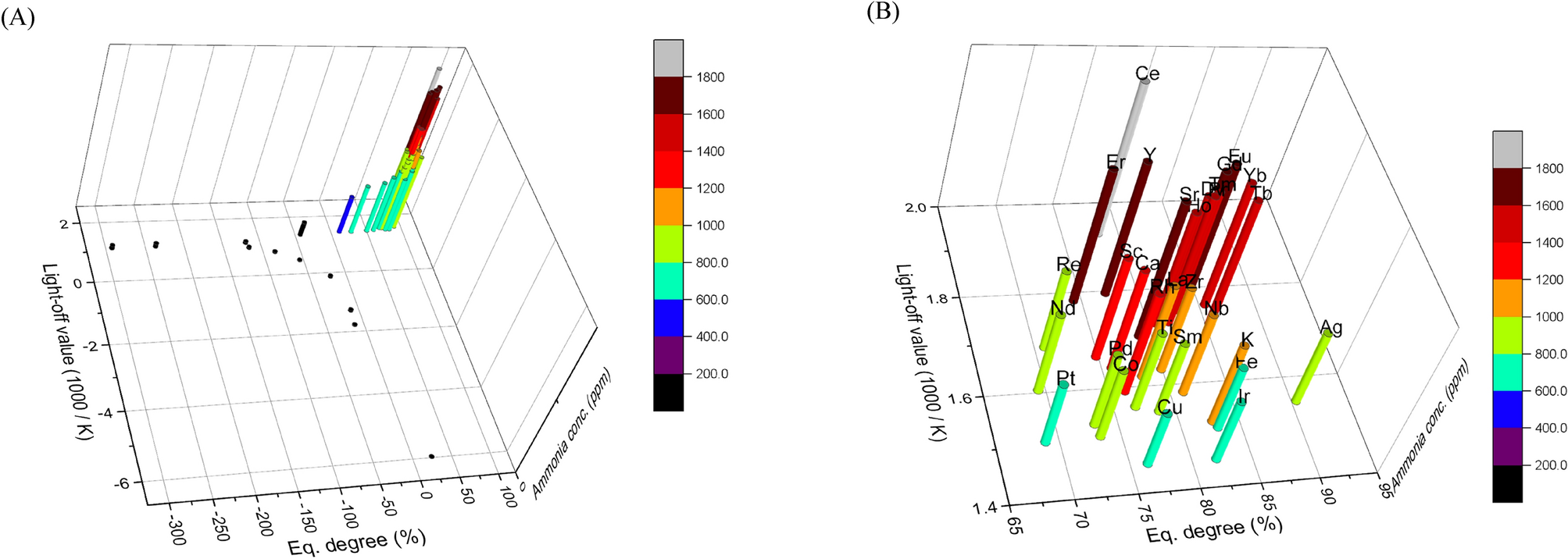

Correlation between Maximum ammonia concentration, equilibrium achievement degree and light-off value. (A) All catalysts. (B) Enlarged view of the crowded region in panel (A). The elemental symbols correspond to the added elements.
